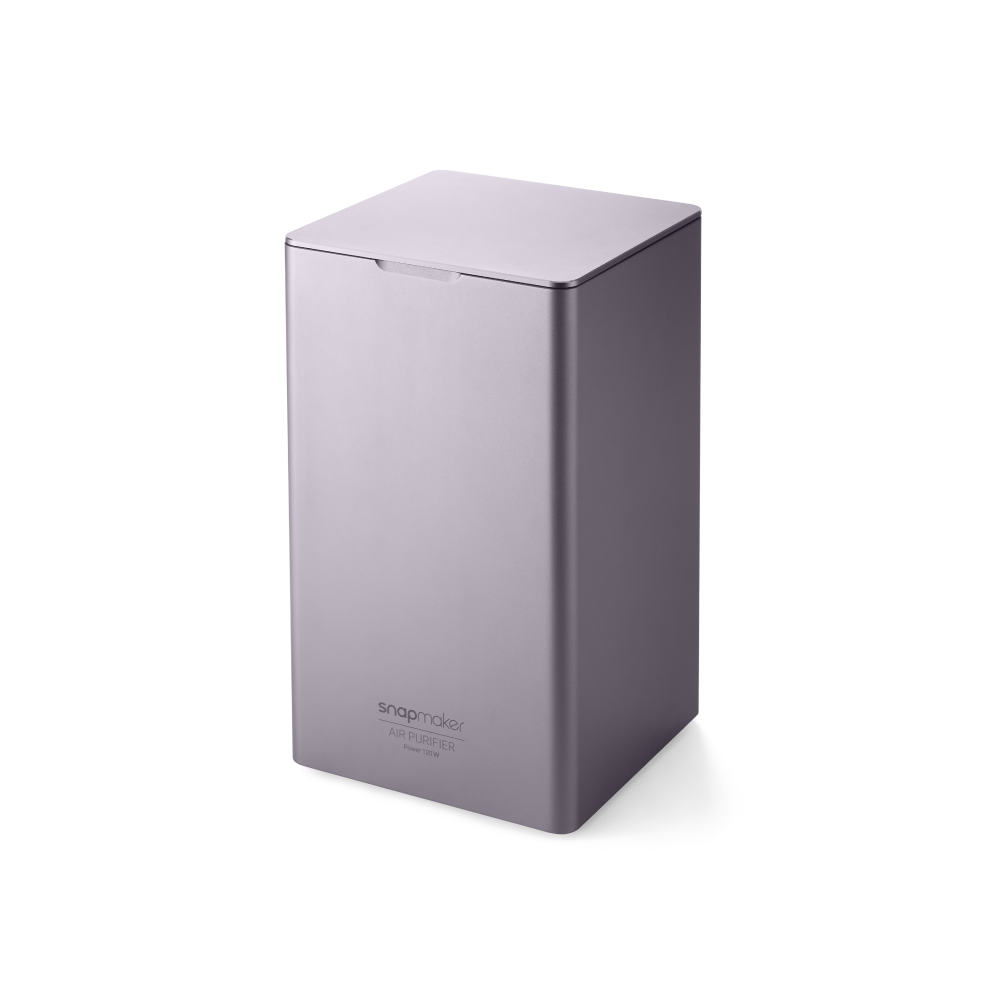

Snapmaker 2.0 Air Purifier
Make in Fresh Air
A New Level of Air Safety
Chemicals such as PM (Particle Matters) and VOCs (Volatile Organic Compounds) can be released when you 3D print with or laser engrave on certain types of materials. You can further filter them with a Snapmaker 2.0 Air Purifier.
Exclusive Filter Cartridge
Filter Detection
Filter Life Detection
Fan Speed Control
Status Light
Full-metal Design
The Exact Filter Cartridge You Need
Tailor-made filter cartridge for your Snapmaker 2.0, with five layers of different filters consolidated into one, it is designed to absorb what's actually emitted during laser engraving or 3D printing process [1].
G4 Filter for Coarse Filtration
Aims at relatively bigger particles (≥ 5 μm in diameter). It filters out more than 90% of PM10 and PM5.
PM10
PM5
Particles
Dust
F9 Filter for Finer Filtration
Works at particles that measure 1 μm or above in diameter. It filters out more than 95% of PM10, PM5 and PM2.5.
PM10
PM5
PM2.5
Customized Activated Carbon Filter
A dense pack of activated carbon is also added to absorb VOCs that no other filters can capture. Unpleasant odor is no longer a problem.
VOCs
Ultra-dense HEPA H13 Filter
Two layers of 70 mm-thick HEPA H13 filter as the final stage gate. They are able to trap up to 99.97% of airborne particles of all sizes, including PM0.3 that are known to be the most penetrating particles in the air.
PM2.5
PM0.3
All in one, Snapmaker 2.0 Air Purifier can be a pretty efficient emissions eliminator [2].
Long Live the Filter Cartridge
Efficiency is not all that matters. The different levels of filter are arranged in certain order inside the cartridge to maximize its lifespan, so that you won't need to replace the cartridge until it gets fully used.
Filter Life Detection
Snapmaker 2.0 carries out a real-time monitoring on the Filter Cartridge and shows its lifespan on the Touchscreen. It lets you know when it's time to pop in a new one.
Be in the Know
The built-in LED strip shows you how the Air Purifier is working through its color change, flowing, breathing, and flashing.
Unpowered
Working normally
Connecting to the Controller
Filter Cartridge taken out
Low filter life or blocked inlet/outlet
Danger
Fan Speed Control
Tap on the Touchscreen to set fan speed for different types of job [3].
Full-metal Design
Both the Enclosure and the Air Purifier are neatly designed as ever. The CNC-machined aluminum beams and shell, with their surface anodized, deliver great durability, super-fine texture, a consistent silver gray looking, as well as well-sealed machine bodies. They're powerful, yet adorable.
Creativeness knows no bounds
Along with the CAN Hub, you can use the Enclosure and the Air Purifier together with all the existing and upcoming Snapmaker 2.0 addons.
Specifications
Snapmaker 2.0
Air Purifier
Main Unit Dimensions (W × D × H)
240 × 271 × 420 mm
(With Air Oulet Connecter)
(With Air Oulet Connecter)
Main Unit Weight
8.8 kg
Air Inlet Diameter
70 mm
Air Volume
150 m³/h
Cable Length
2,000 mm
Clamp Diameter
65–89 mm
Filter Cartridge Dimensions (W × D × H)
191 × 229 × 308 mm
Filter Cartridge Lifespan[4]
Approx. 3 months
Filter Cartridge Weight
2.4 kg
Filtration Efficiency (0.3–0.5 μm)[5]
95.9%
Hose Dimensions (Diameter × L)
75 × 2,000 mm
Input Voltage
AC 100 V – 240 V
Maximum Noise (With Hose)
65 dB
Package Dimensions (W × D × H)
316 × 360 × 595 mm
Package Weight
12.7 kg
Power Cord Length
2,000 mm
Rated Current
5A
Rated Power
120 W
Rated Voltage
24 V DC
Operating Temperature
0°C–35°C
Storage Temperature
-4°C–45°C
Outer Shell Material
Aluminum alloy
Approvals
CE, FCC, UL62368, IC, RCM, ROHS, WEEE
In the Box
Air Purifier × 1
Cover × 1
Filter Cartridge × 1
Hose × 1
Hose Clamp × 2
Quick Start Guide × 1
Connecting Cable × 1
Power Adapter × 1
[1] Using the Air Purifier when printing with ABS or other thermo-sensitive filaments may lead to poor printing quality. If you need to filter 3D printing emissions, it's recommended to turn on the Air Purifier after printing job is finished.
[2] Tested by CAS Testing Technical Services (Guangzhou) Co., Ltd, according to standards GB/T 14295-2019 and GB/T 34012-2017. Report No.: JKK21030129A(E), JKK21030129B(E).
[3] The Touchscreen UI is subject to change due to iterations.
[4] This data is obtained under the condition of typical laser use, and is for reference only.
[5] 0.3 μm corresponds to the worst case. Particles that are larger or smaller can be filtered with even higher efficiency.
