SNAPMAKER RAY 20 W & 40 W LASER-GRAVIERER UND -SCHNEIDER MIT LUFTUNTERSTÜTZUNG (INKL. MWST.)
€1.059,00 EUR
€1.799,00
Grundpreis /
Nicht verfügbar
Ray ist unser erster eigenständiger 20 W & 40 W Lasergravierer und -schneider, der mit Luftunterstützung ausgestattet ist und dabei eine 400 mm × 600 mm große Arbeitsfläche bietet. Es hat die Merkmale der Snapmaker Linearschienen in Industriequalität geerbt und setzt unser langjähriges Bestreben fort, hochwertige Laserprodukte herzustellen.
Allgemeine Merkmale:
• 20 mm Kieferholz in einem Durchgang schneiden (40 W)
• 15 mm Linde-Sperrholz in einem Durchgang schneiden (40 W)
• 10 mm Linde-Sperrholz in einem Durchgang schneiden (20 W)
• 400 mm × 600 mm Arbeitsbereich
• Linearschienen in Industriequalität unterstützt Arbeitsgeschwindigkeiten von bis zu 500 mm/s
• Sauberer Schnitt mit Luftunterstützungspumpe
• Die Luftunterstützung kann über Luban gesteuert werden
• Über 1000 Design-Vorlagen KOSTENLOS in Luban verfügbar, kompatibel mit LightBurn
• Einfache Fokussierung mit dem Fokushebel
• Den Auftrag mit dem Fadenkreuz ausrichten
• Laserschutzschild
• Orientierungserkennung
• Überhitzungsschutz
• Eingebauter Schnellwechselmechanismus
Kompatibilität:
• Gehäuse für Snapmaker Ray
• Luftreiniger
• 20 W & 40 W Lasermodul
• Rotationsmodul
• Neues 2 W Infrarot-Lasermodul
Zwei Jahre Garantie inbegriffen. Inkl. MwSt.
SNAPMAKER RAY 20 W & 40 W LASER-GRAVIERER UND -SCHNEIDER MIT LUFTUNTERSTÜTZUNG (INKL. MWST.) - Ray 40W Laser Engraver and Cutter ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Payment methods
Delivery
Orders will be shipped in 1-3 business days.
Orders will be shipped in 1-3 business days.
Versand wird beim Checkout berechnet.
Earn [points_amount] when you buy this item.
Linh Tran
As one of lucky people to get Ray early, I have a good chance to run & test it for a while. I ordered 40W & Ray separately, no enclosure (I will share my modification on A350 Enclosure to adapt with Ray later). Here come the unbox of what you will get when arrive! Pro: High end-finish, smooth surface, no sharp edge. Hard to mismatch or wrong installation. Con: Lack of Assembly Instruction as hard copy and some items we have no idea how to use with.
Steven Theiss
My 2nd project with my Ray, and my first try at using a laser to 3D "carve". The max pocket depth in this image is about 3.3mm. I still need to work out how to differentiate between regions that are dark because they're farther back, and ones that are dark because of shadows (under his nose) or actual darkness in the image (like his stripes). Probably need to start with something a bit less inherently "contrasty". Super-impressed with what this thing can do!
Candle Jurgensen
Order filled on the Ray for a School. Acacia Wood. Engravings are tactile and stunning. 24 mins for 4x coasters at a time (could have done a lot more, but did them in small batches for quality control). Box done on the Ray as well - 27 mins for it all.
Snapmaker Ray 20W & 40W Laser Cutter
Customer Reviews
Linh Tran
As one of lucky people to get Ray early, I have a good chance to run & test it for a while. I ordered 40W & Ray separately, no enclosure (I will share my modification on A350 Enclosure to adapt with Ray later). Here come the unbox of what you will get when arrive! Pro: High end-finish, smooth surface, no sharp edge. Hard to mismatch or wrong installation. Con: Lack of Assembly Instruction as hard copy and some items we have no idea how to use with.
Steven Theiss
My 2nd project with my Ray, and my first try at using a laser to 3D "carve". The max pocket depth in this image is about 3.3mm. I still need to work out how to differentiate between regions that are dark because they're farther back, and ones that are dark because of shadows (under his nose) or actual darkness in the image (like his stripes). Probably need to start with something a bit less inherently "contrasty". Super-impressed with what this thing can do!
Candle Jurgensen
Order filled on the Ray for a School. Acacia Wood. Engravings are tactile and stunning. 24 mins for 4x coasters at a time (could have done a lot more, but did them in small batches for quality control). Box done on the Ray as well - 27 mins for it all.
Diode Laser
Max. Work Speed
Industrial-grade Linear Rails
Laser Vectors in Luban
Work Area
Smart Air Assist
Laser Class 1 Safety
Features highlights.
Cutting-edge laser beam combining technology.
40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics.
Strong cutting capabilities.
Empowered by 40W output power.
Achieve cleaner cuts with Air Assist.
1. Air gets pumped in.
2. Blow the fumes away and prevent charring.
3. Keep the laser lens clean.
4. Fumes get channeled out through grid table.
400mm × 600mm.
You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as thick as 160mm.
Industrial-grade Linear Rails.
Support work speed up to 500mm/s and long-lasting operation.
500mm/s Max. Work Speed.
Support work speed up to 500mm/s and long-lasting operation.
Compatible with LightBurn.
Support features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn.
1000+ laser vectors in Luban.
Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.
Laser Class 1 safety certified by FDA.
The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened.
Dust isolation.
Turn on the exhaust fan to cast off all the smoke and dust. You can further connect it with our Air Purifier to filter harmful chemicals.
Laser focusing made easy with quick swap.
In just three steps, you can easily finish the calibration.
Rotary engraving.
By adding a 4-axis, our Rotary Module enables your Snapmaker Ray to rotary laser.
Watch Snapmaker Ray In Action
Specification
General
Dimensions (Machine)
849mm × 600mm × 303mm

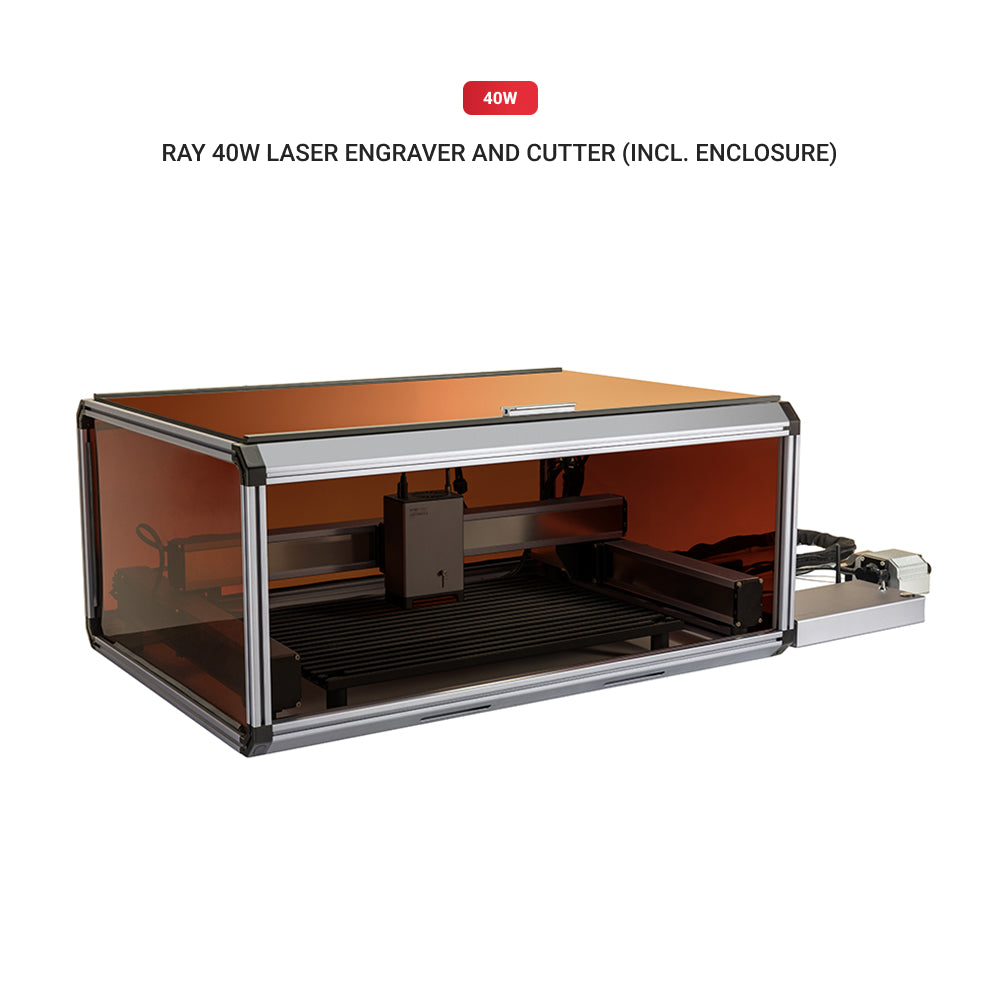

Dimensions (Machine & Enclosure)
933mm × 665mm × 417mm

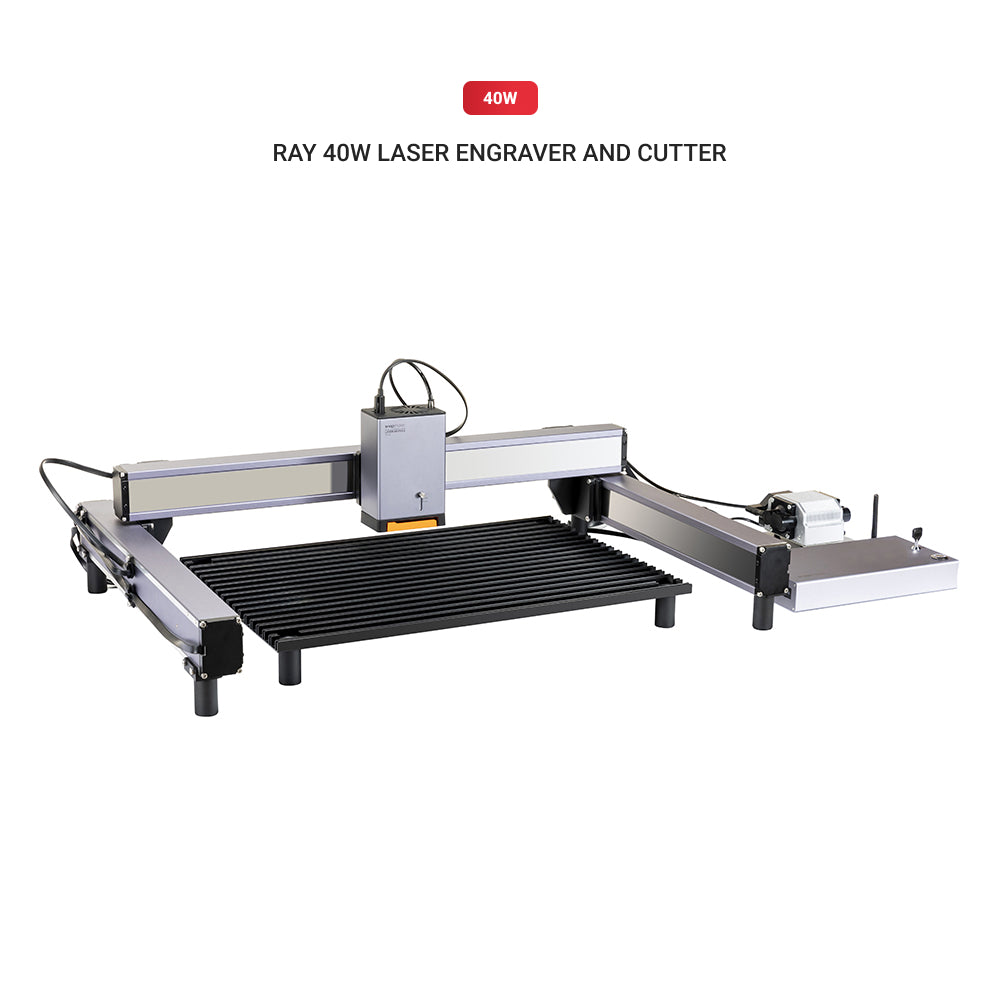

Ray 40W Laser Engraver and Cutter
Ray 20W Laser Engraver and Cutter
Performance
Laser Module Output Power
40W
20W
Laser Electric Power
140W
65W
Machine Power (Enclosure excl.)
215W
140W
Maximum Thickness of One-pass Cutting
15mm Basswood Plywood
10mm Basswood Plywood
Maximum Work Speed[1]
500mm/s
500mm/s
Maximum Cutting Speed[1]
20mm/s
10mm/s
Laser Spot Dimensions
0.1mm × 0.15mm
0.08mm × 0.1mm
Laser Type
450 - 460nm Semi-conductor
450 - 460nm Semi-conductor
Dimension
Weight (Enclosure excl.)
15.06kg
14.6kg
Dimensions (Enclosure excl.)
849mm × 600mm × 303mm
849mm × 600mm × 278mm
Dimensions (Enclosure)
933mm × 665mm × 417mm
933mm × 665mm × 417mm
Maximum Workpiece Height
160mm (with two sets of cylindrical feet)
160mm (with two sets of cylindrical feet)
Work Area
400mm × 600mm
400mm × 600mm
Supported Materials
Engraving Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Cutting Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Software
Supported Design File
STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
Supported Processing File
NC
NC
Software
Luban, LightBurn
Luban, LightBurn
Connection
Wi-Fi, USB
Wi-Fi, USB
Compatibility
Addons
Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module
Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module
In the Box
Ray 40W/20W Laser Cutter
20W/40W Laser Module × 1
Power Module × 1
Air Assist Pump × 1
Air Tube × 1
Cylindrical Foot × 8
Foot Holder × 4
M8 Air Tube Connector × 1
M5 Air Tube Connector × 1
Cable Tie × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Cable Clip × 14
Quick-swap Toolhead Bracket × 1
Cable Collector × 1
USB Cable × 1
Toolhead Cable × 1
Right Linear Module Connector × 1
Left Linear Module Connector × 1
Foot Connector × 2
Wi-Fi Antenna × 1
Safety Key × 2
Laser Engraving and Cutting Platform × 1
AC Power Cable × 1
microSD Card × 1
Basswood Plywood × 1
Laser Safety Goggles × 1
Cotton Swab × 5
Laser Lens Protector × 1
M5 × 12 Screw × 36
M5 × 16 Screw × 5
H3.0 Hex Key × 1
microSD Card Reader × 1
Foot × 4
Z-axis Linear Module × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Base Plate × 1
AC Power Cable × 1
USB Cable × 1
Ray Machine Body (Without Laser Module)
Power Module × 1
Air Tube × 1
Cylindrical Foot × 8
Foot Holder × 4
M8 Air Tube Connector × 1
M5 Air Tube Connector × 1
Cable Tie × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Cable Clip × 14
Quick-swap Toolhead Bracket × 1
Cable Collector × 1
USB Cable × 1
Toolhead Cable × 1
Right Linear Module Connector × 1
Left Linear Module Connector × 1
Foot Connector × 2
Wi-Fi Antenna × 1
Safety Key × 2
Laser Engraving and Cutting Platform × 1
AC Power Cable × 1
microSD Card × 1
Basswood Plywood × 1
Laser Safety Goggles × 1
Cotton Swab × 5
Laser Lens Protector × 1
M5 × 12 Screw × 36
M5 × 16 Screw × 5
H3.0 Hex Key × 1
microSD Card Reader × 1
Foot × 4
Enclosure for Ray
Enclosure Door × 1
Front/Back Panel × 2
Left Side Panel × 1
Right Side Panel × 1
Long Beam-1 (with air inlets) × 1
Long Beam-3 (with Enclosure converter) × 1
Long Beam-4 (with hinges) × 1
Long Beam-2 (with hall switch) × 1
M4 Wing Nut × 5
Exhaust Fan Guard × 5
Exhaust Fan × 1
Profile Connector × 8
Snap Bushing × 1
Hose Connector × 1
Enclosure Cable × 1
Sealing Strip × 1
Column × 4
Short Beam (with LED strip) × 2
Short Beam × 2
Sealing Plug × 9
H3.0 Hex Key × 1
H2.5 Hex Key × 1
Hose Clamp × 1
Hose × 1
M5 × 30 Screw × 18
M4 × 40 Screw × 5
M5 × 12 Screw × 18
M4 × 12 Screw × 4
Cord Collecting Strip × 1
Notes:
[1] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.
Frequently Asked Questions
1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?
The maximum working speed is 500mm/s based on the 3mm Basswood Plywood performing one pass cutting. The laser spot dimensions are 0.1 mm × 0.15 mm.
2. What does Laser Class 1 Safety Certified by FDA mean?
This certification means the laser is safe under all normal use conditions, as the laser light is fully contained within an enclosure. This prevents any risk of accidental exposure to laser radiation.
3. What is Smart Air Assist and how does it improve laser machining?
Smart Air Assist automatically clears smoke and debris from the engraving area, enhancing quality and clarity by preventing residue buildup. This results in sharper details and reduces the risk of overheating or fire during laser engraving and cutting.
4. How does the Snapmaker Ray 40W achieve color laser marking on stainless steel?
The Snapmaker Ray 40W changes the thickness of a chromium oxide layer on stainless steel by heating it, which affects the light interference and creates various colors. Refer to these parameter sets for color laser marking guidance.
5. How does the machine ensure it operates accurately without errors
The Snapmaker Ray 40W laser engraver and cutter uses orientation detection with gyro sensors to ensure it operates accurately. These sensors verify that the machine is properly aligned and positioned before any task is initiated, minimizing operational errors.
Snapmaker Ray 20W & 40W Laser Cutter
Industrial-grade Linear Rails
Smart Air Assist
Diode Laser
Max. Work Speed
Laser Vectors in Luban
Work Area
Laser Class 1 Safety
Features highlights.
Cutting-edge laser beam combining technology..
40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics.
Strong cutting capabilities.
Empowered by 40W output power.
Achieve cleaner cuts with Air Assist.
1. Air gets pumped in.
2. Blow the fumes away and prevent charring.
3. Keep the laser lens clean.
4. Fumes get channeled out through grid table.
400mm × 600mm.
You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as thick as 160mm.
Industrial-grade Linear Rails.
Support work speed up to 500mm/s and long-lasting operation.
500mm/s Max. Work Speed.
Compatible with LightBurn.
Support features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn.
1000+ laser vectors in Luban.
Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.
Laser Class 1 safety certified by FDA.
The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened.
Dust isolation.
Turn on the exhaust fan to cast off all the smoke and dust. You can further connect it with our Air Purifier to filter harmful chemicals.
Laser focusing made easy with quick swap.
In just three steps, you can easily finish the calibration.
Rotary engraving.
By adding a 4-axis, our Rotary Module enables your Snapmaker Ray to rotary laser.
Watch Snapmaker Ray In Action
Specification
General
Dimensions (Enclosure excl.)
849mm × 600mm × 303mm
Dimension (Enclosure)
933mm × 665mm × 417mm
Ray 40W Laser Engraver and Cutter
Performance
Laser Module Output Power
40W
Laser Electric Power
140W
Machine Power (Enclosure excl.)
215W
Maximum Thickness of One-pass Cutting
15mm Basswood Plywood
Maximum Work Speed[1]
500mm/s
Maximum Cutting Speed[1]
20mm/s
Laser Spot Dimensions
0.1mm × 0.15mm
Laser Type
450 - 460nm Semi-conductor
Dimension
Weight (Enclosure excl.)
15.06kg
Dimensions (Enclosure excl.)
849mm × 600mm × 303mm
Dimensions (Enclosure)
933mm × 665mm × 417mm
Maximum Workpiece Height
160mm (with two sets of cylindrical feet)
Work Area
400mm × 600mm
Supported Materials
Engraving Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Cutting Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)
Software
Supported Design File
STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
Supported Processing File
NC
Software
Luban, LightBurn
Connection
Wi-Fi, USB
Compatibility
Addons
Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module
Ray 20W Laser Engraver and Cutter
Performance
Laser Module Output Power
20W
Laser Electric Power
65W
Machine Power (Enclosure excl.)
140W
Maximum Thickness of One-pass Cutting
10mm Basswood Plywood
Maximum Work Speed[1]
500mm/s
Maximum Cutting Speed[1]
10mm/s
Laser Spot Dimensions
0.08mm × 0.1mm
Laser Type
450 - 460nm Semi-conductor
Dimension
Weight (Enclosure excl.)
14.6kg
Dimensions (Enclosure excl.)
849mm × 600mm × 278mm
Dimensions (Enclosure)
933mm × 665mm × 417mm
Maximum Workpiece Height
160mm (with two sets of cylindrical feet)
Work Area
400mm × 600mm
Supported Materials
Engraving Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Cutting Materials
Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Software
Supported Design File
STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
Supported Processing File
NC
Software
Luban, LightBurn
Connection
Wi-Fi, USB
Compatibility
Addons
Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module
In the Box
Ray 40W/20W Laser Cutter
20W/40W Laser Module × 1
Power Module × 1
Air Assist Pump × 1
Air Tube × 1
Cylindrical Foot × 8
Foot Holder × 1
M8 Air Tube Connector × 1
M5 Air Tube Connector × 1
Cable Tie × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Cable Clip × 14
Quick-swap Toolhead Bracket × 1
Cable Collector × 1
USB Cable × 1
Toolhead cable × 1
Right Linear Module Connector × 1
Left Linear Module Connector × 1
Foot Connector × 2
Wi-Fi Antenna × 1
Safety Key × 2
AC Power Cable × 1
Laser Engraving and Cutting Platform × 1
Basswood Plywood × 1
Laser Safety Goggles × 1
Cotton Swab × 5
Laser Lens Protector × 1
M5 × 12 Screw × 36
M5 × 16 Screw × 5
H3.0 Hex Key × 1
microSD Card Reader × 1
microSD Card × 1
Foot × 4
Base Plate × 1
AC Power Cable × 1
USB Cable × 1
Ray Machine Body (Without Laser Module)
Power Module × 1
Air Tube × 1
Cylindrical Foot × 1
Foot Holder × 1
M8 Air Tube Connector × 1
M5 Air Tube Connector × 1
Cable Tie × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Cable Clip × 14
Quick-swap Toolhead Bracket × 1
Cable Collector × 1
USB Cable × 1
Toolhead cable × 1
Right Linear Module Connector × 1
Left Linear Module Connector × 1
Foot Connector × 2
Wi-Fi Antenna × 1
Safety Key × 2
Laser Engraving and Cutting Platform × 1
AC Power Cable × 1
microSD Card × 1
Basswood Plywood × 1
Laser Safety Goggles × 1
Cotton Swab × 5
Laser Lens Protector × 1
M5 × 12 Screw × 36
M5 × 16 Screw × 5
H3.0 Hex Key × 1
microSD Card Reader × 1
Foot × 4
Enclosure for Ray
Enclosure Door × 1
Front/Back Panel × 2
Left Side Panel × 1
Right Side Panel × 1
Long Beam-1 (with air inlets) × 1
Long Beam-3 (with Enclosure converter) × 1
Long Beam-4 (with hinges) × 1
Long Beam-2 (with hall switch) × 1
M4 Wing Nut × 1
Exhaust Fan Guard × 1
Exhaust Fan × 1
Profile Connector × 8
Snap Bushing × 1
Hose Connector × 1
Enclosure Cable × 1
Sealing Strip × 1
Column × 4
Short Beam (with LED strip) × 2
Short Beam × 2
Sealing Plug × 9
H3.0 Hex Key × 1
H2.5 Hex Key × 1
Hose Clamp × 1
Hose × 1
M5 × 30 Screw × 18
M4 × 40 Screw × 5
M5 × 12 Screw ×18
M4 × 12 Screw × 4
Cord Collecting Strip × 1
Notes:
[1] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.
Frequently Asked Questions
1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?
The maximum working speed is 500mm/s based on the 3mm Basswood Plywood performing one pass cutting. The laser spot dimensions are 0.1 mm × 0.15 mm.
2. What does Laser Class 1 Safety Certified by FDA mean?
This certification means the laser is safe under all normal use conditions, as the laser light is fully contained within an enclosure. This prevents any risk of accidental exposure to laser radiation.
3. What is Smart Air Assist and how does it improve laser machining?
Smart Air Assist automatically clears smoke and debris from the engraving area, enhancing quality and clarity by preventing residue buildup. This results in sharper details and reduces the risk of overheating or fire during laser engraving and cutting.
4. How does the Snapmaker Ray 40W achieve color laser marking on stainless steel?
The Snapmaker Ray 40W changes the thickness of a chromium oxide layer on stainless steel by heating it, which affects the light interference and creates various colors. Refer to these parameter sets for color laser marking guidance.
5. How does the machine ensure it operates accurately without errors
The Snapmaker Ray 40W laser engraver and cutter uses orientation detection with gyro sensors to ensure it operates accurately. These sensors verify that the machine is properly aligned and positioned before any task is initiated, minimizing operational errors.
