Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)
Snapmaker 2.0 Rotary Module (VAT Incl.)

Snapmaker 2.0 Rotary Module (VAT Incl.)

Regular price
€649,00
Sale price
€599,00
Quantity must be 1 or more

Your order will be shipped in April, 2021.

Overall Features:
  • 4-axis rotary carving and laser engraving
  • Rotary carving with high precision
  • Bundled software and hardware experience
  • Snapmaker Luban 4-axis software support
  • Origin Assistant (CNC) and Auto Focus (Laser) enabled
  • Swappable 3-jaw chuck that can clamp inwards or outwards
  • Base plate can be installed on different positions
  • Compatible with all current and future Snapmaker 2.0 addons
  • Fully utilize features on the enclosure and emergency stop button
Maximum Material Size:
  • Rotary Module for A350: 170 height × 68 radius (mm)
  • Rotary Module for A250: 70 height × 68 radius (mm)
Dimensions:
  • Rotary Module for A350: 120 width x 384 depth x 108 height (mm)
  • Rotary Module for A250: 120 width x 284 depth x 108 height (mm)

Make in a new dimension.

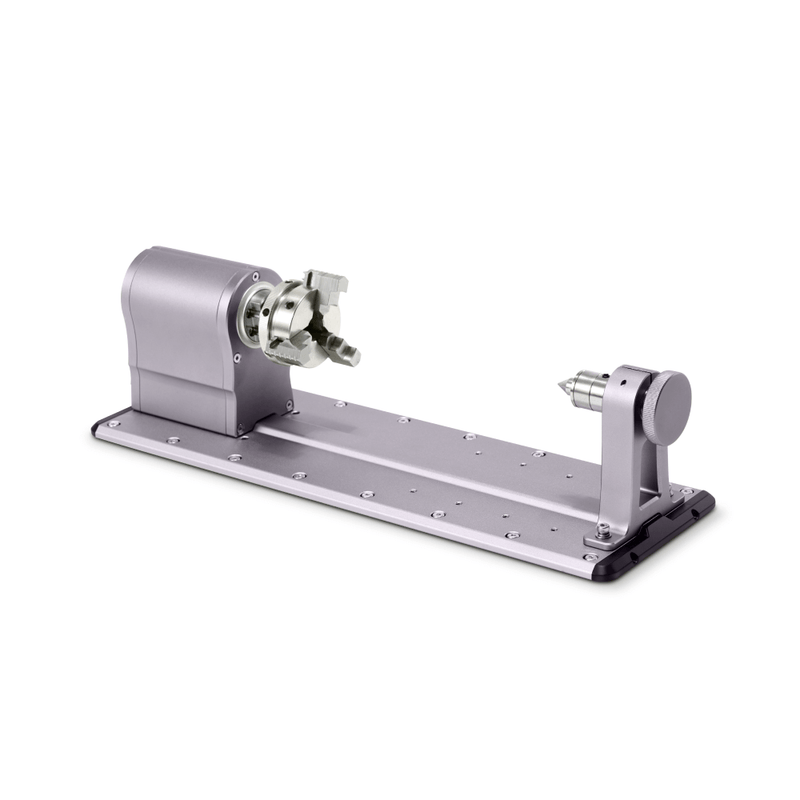

The Snapmaker 2.0 Rotary Module adds a 4th axis to your Snapmaker, making it an extremely mighty desktop CNC machining powerhorse, and much more.

Desktop application of CNC machining.

Rotary module excels at making three-dimensional artworks such as desktop miniatures and small-sized sculptures. Without under extrusion, layer shifting, stringing, or supports of FDM or SLA, the rotary module can accomplish a level of detail and craftsmanship that no other 3D printing technologies can.

Rotary CNC

FDM

SLA

Rotary CNC

FDM

SLA

Rotary CNC carving and laser engraving.

By adding a 4-axis, the rotary module enables your Snapmaker to rotary CNC carve a dozen of materials including jade and wood and rotary laser engrave materials such as wood and leather.

Rotary CNC

Rotary CNC

Rotary Laser

Rotary Laser

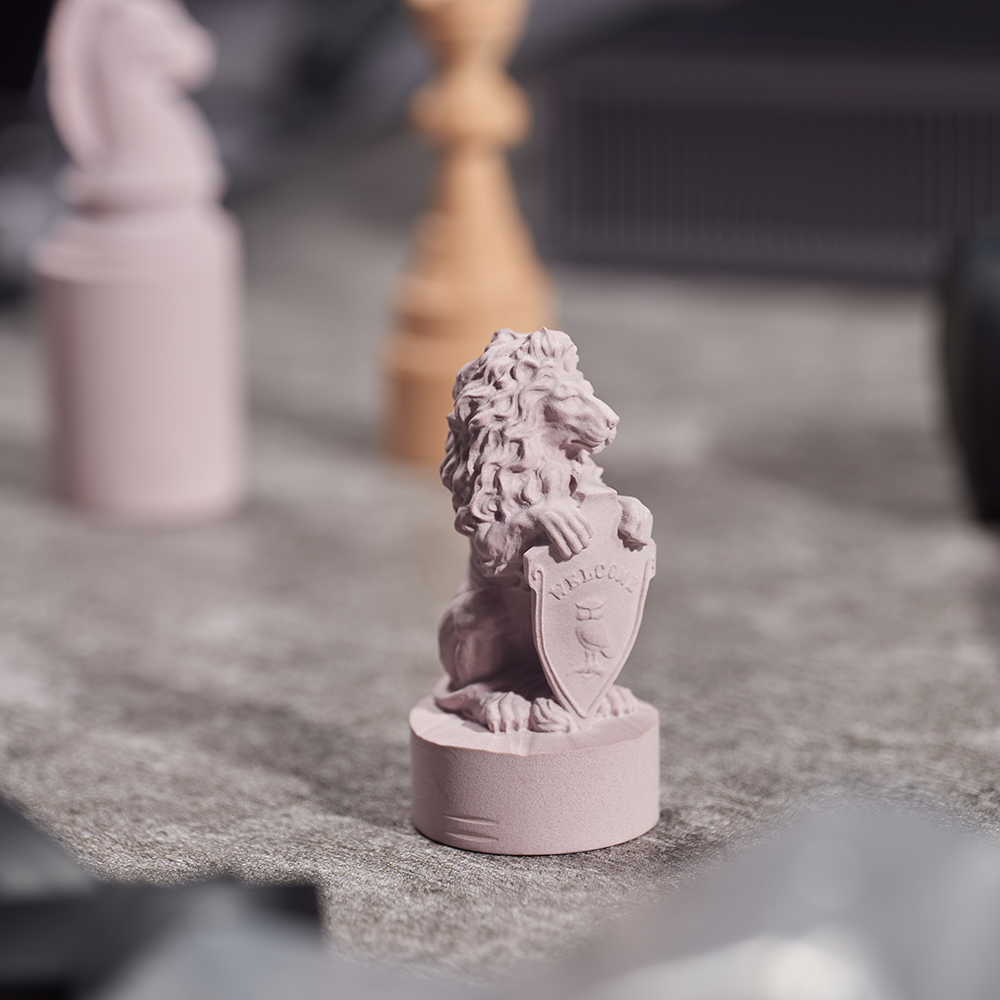

Add exquisite works to your collection.

Whether it is a brave dwarf king with wavy beards, an agile elf with pointy ears or a beasty orc chiefdom with legendary weapons, the Snapmaker 2.0 Rotary Module can make them all. Laser engraving you ask? The rotary module can handle that as well, no problem.

Dwari The Dynamiter

Model: A350 + Rotary CNC
Time: 18h
Material: Epoxy tooling board

Dwari The Dynamiter

Model: A350 + Rotary CNC
Time: 18h
Material: Epoxy tooling board

King’s Bust

Model: A350 + Rotary CNC
Time: 12h
Material: Epoxy tooling board

King’s Bust

Model: A350 + Rotary CNC
Time: 12h
Material: Epoxy tooling board

Siberian Tiger

Model: A350 + Rotary Laser
Time: 2h
Material: Kraft cylinder

Siberian Tiger

Model: A350 + Rotary Laser
Time: 2h
Material: Kraft cylinder

Ultra-fine machining without missing any details.

The rotary module uses strain wave gearing and packs a 100:1 speed reducer that converts the power to a lower output speed. This allows the 3-jaw chuck to rotate with a minimum angle of 0.1°. Now, you can make on uneven and irregular surfaces without missing a step.

Precise control at your fingertips.

360° continuous rotation with a maximum angular speed of 45° per second, the rotary module is one fast sculptor. Along with precise control ranging from 0.2, 1, and 5-degree rotation on the touchscreen, you can really see the difference in every motion.

360°

continuous rotation

45°/s

maximum angular speed

0.2°

precise control

360°

continuous rotation

45°/s

maximum angular speed

0.2°

precise control

Make it your way.

The 3-jaw chuck can grip or support objects with sizes up to 68radius x 170 height(mm) and different shapes, and is swappable with compatible chucks on the market.

The 3-jaw chuck supports objects with sizes up to 68 radius × 170 height (mm) and different shapes. It is swappable with compatible chucks on the market.

The 3-jaw chuck supports objects with sizes up to 68 radius × 170 height (mm) and different shapes. It is swappable with compatible chucks on the market.

The tailstock center holds objects securely in place.

The base plate has holes on both sides so that you can install the headstock and tailstock at different locations.

The base plate has holes on both sides so that you can install the headstock and tailstock at different locations.

Meet Origin Assistant, your next intuitive CNC carving experience.

The new touchscreen feature, Origin Assistant, smoothens your experience and interaction with rotary carving. Presetting CNC bits, setting origins and Z-offsets, and installing materials are made simple. You can also choose Assist Mode for an easier process or Manual Mode for more flexible controls.

The new touchscreen feature, Origin Assistant, smoothens your experience and interaction with the rotary carving feature. Presetting CNC bits, setting origins and Z-offsets, and installing materials are made simple. You can also choose Assist Mode for faster procedure or Manual Mode for more flexible controls.

The new touchscreen feature, Origin Assistant, smoothens your experience and interaction with rotary carving. Presetting CNC bits, setting origins and Z-offsets, and installing materials are made simple. You can also choose Assist Mode for an easier process or Manual Mode for more flexible controls.

4-axis CNC with Snapmaker Luban.

Adjust rotary CNC job types, carving tools and configurations to your liking right in Snapmaker Luban. Full 4-axis linkage support, where X, Y, Z, and B axes move simultaneously, has been added to the software.

Rotary laser engraving with lively results.

Take your laser engraving projects to the next dimension. Setting up your rotary laser engraving projects is similar to how you set up your regular laser projects.[1]

About that learning curve.

Rotary carving is known for having a bit of a learning curve and not as user friendly to newcomers. That’s why we took a step further to smoothen your transition from 3-axis to 4-axis machining.

Experience
(Higher is better)

Pro

Novice

Rotary CNC a figure

Rotary CNC a miniature tree

Rotary laser engrave

Time
(Lower is better)

Sleek design you’ve always loved.

The Snapmaker 2.0 Rotary Module carries the same design signature from the Snapmaker 2.0. The metallic grey finish gives it a sophisticated look and feel. Fully aondized aero-grade aluminum is the secret to its durability.

Combine with Snapmaker Emergency Stop Button

Make with confidence.

Start rotary carving, something went awry, press the Snapmaker 2.0 Emergency Stop Button, and start fresh again. The Snapmaker 2.0 Emergency Stop Button is designed to provide an extra layer of safety for you and your family. Simply press the stop button and your operation will come to a halt.

Peace of mind.

The Snapmaker 2.0 Emergency Stop Button can be installed practically anywhere, which means you can easily access the stop button when it matters most. Imagine if you wanted to salvage your art piece or the bit was about to crash into the machine, you pressed the stop button without thinking and further potential harm was prevented.

Glowing status indicators for extra reliability.

The Snapmaker 2.0 Emergency Stop Button connects to the main controller of the machine. It sends a stop signal to the controller at your command and has glowing status indicators, green for standby, flashing red for activated, and alternating between green and red for connecting, so you know you are protected.

Power off

Standby

Power off

Standby

Activated

Connecting

Activated

Connecting

Everything is one.

The Snapmaker 2.0 Rotary Module is compatible with all current and future addons. Using the rotary module in combination with the upcoming Air Purifier and enclosure ensures an even safer working environment by filtering fumes and preventing dusts for yourself and people around you.

Tech Specs

*Special thanks to MiniaturesOfmadness for providing us with such amazing dwarf miniatures. If you are interested in the original print files, please go to their website for more information.

1. Auto Focus and Manual Focus for laser enabled
