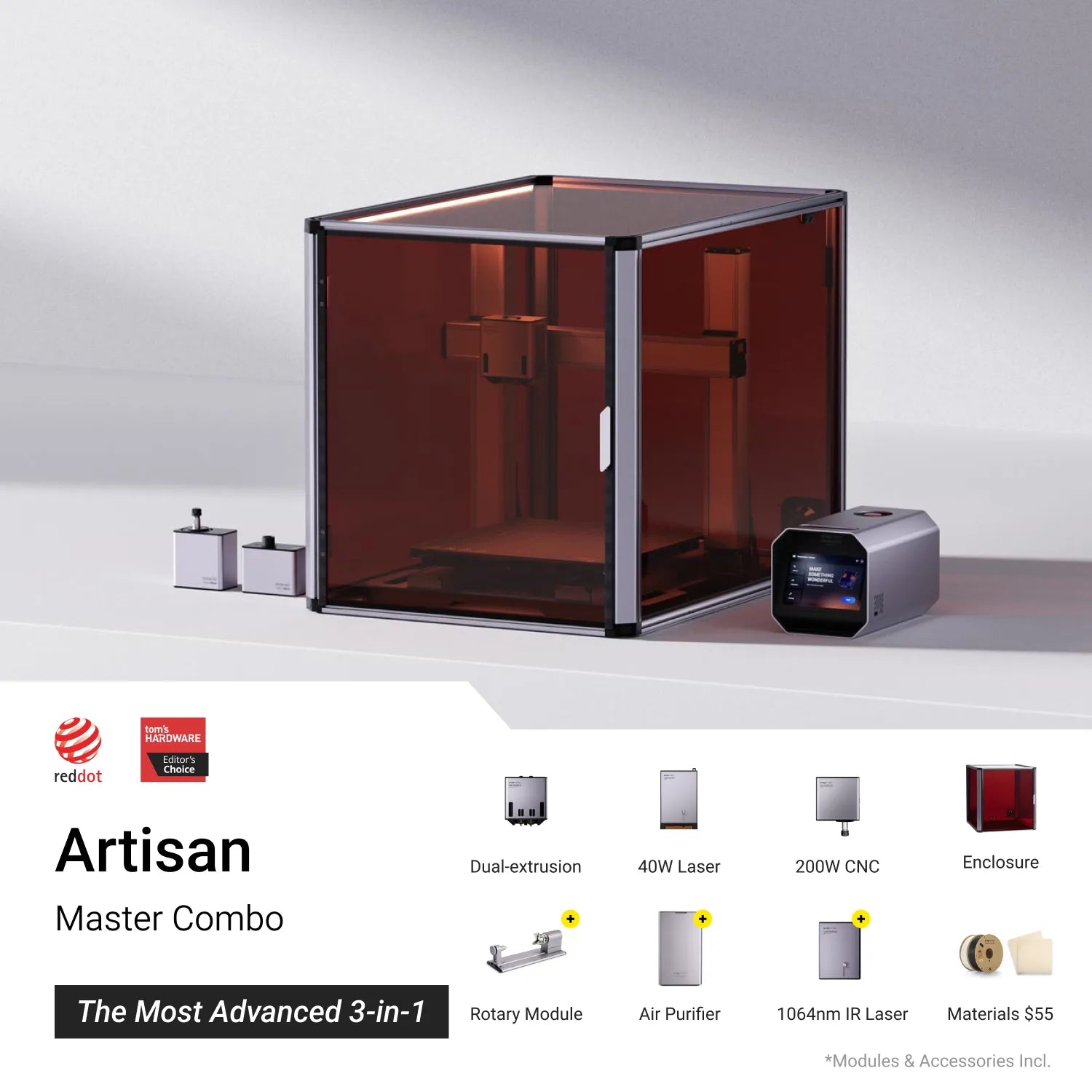

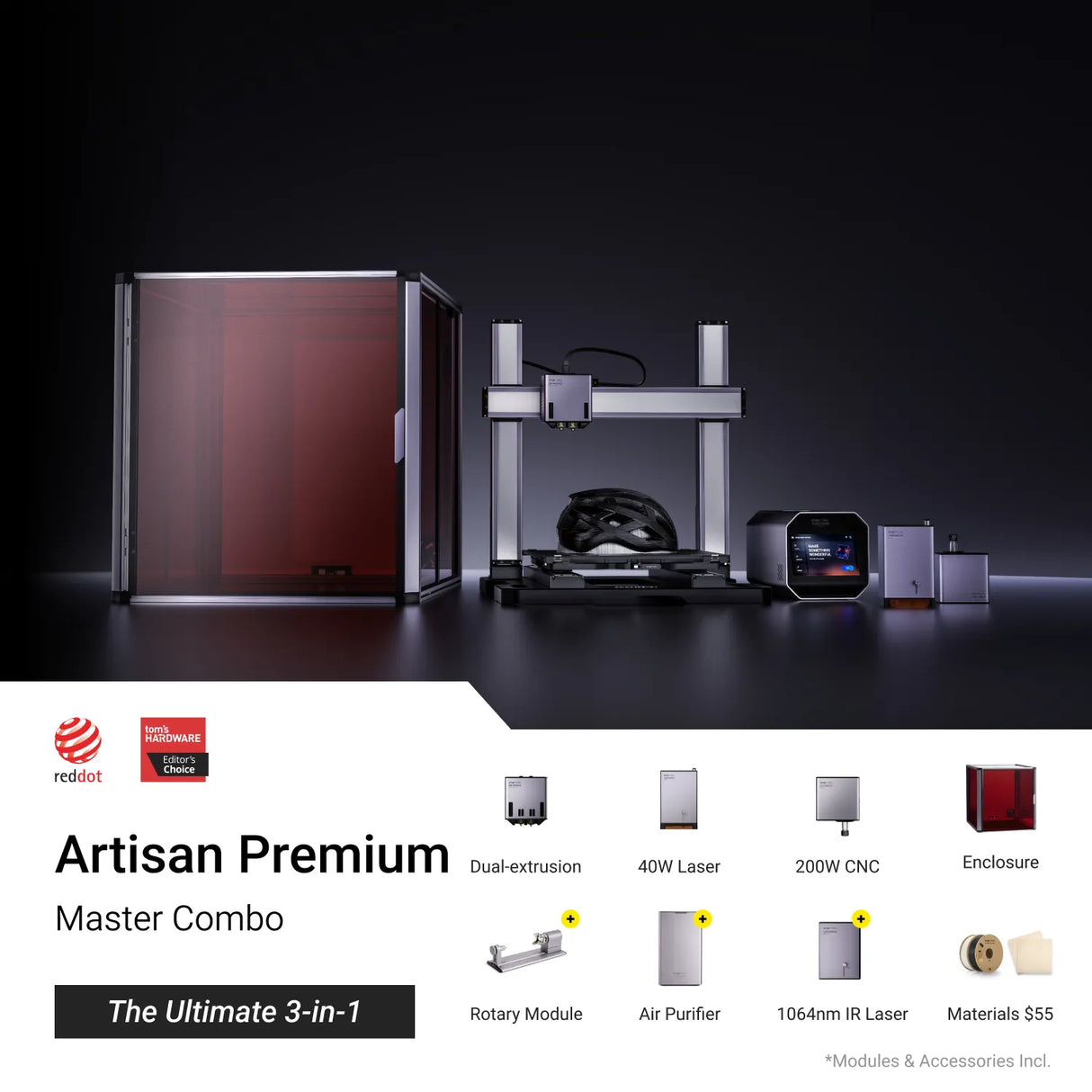

Artisan 3-in-1 3D Printer
(Enclosure Incl.)
Turn Your Desktop Into a Workshop
Industrial-grade Transmission Technology.
We introduce industrial-grade transmission technology to desktop fabrication—steel guiderails made by CNC grinding at micron level are embedded in Artisan's linear modules. This leads to a significant raise in precision, rigidity and durability, bringing you a fast, accurate and steady making experience.
Never Put Ideas on Hold Because of Limited Space.
Create big or multiple objects as you please in 400 mm × 400 mm × 400 mm large work area[1].
400 × 400 × 400 Work Area
3D Printing
Laser Cutting
CNC Cutting
Slide it. Click it. Nailed it.
Quick-swap platforms and toolheads let you shift among 3 functions in 1 minute.
Platforms
Toolheads
All-metal. Next Level.
While inheriting Snapmaker’s signature all-metal design, Artisan also comes with an upgraded one-piece die-cast base plate in a larger size. It’s as steady as a rock even during high-speed CNC machining.
CNC-milled linear module shell
One-piece die-cast base plate
Ultra-wide 7" Touchscreen for More Room to Play.
Vision broader. Workflow smoother. UI design more intuitive. And operation that fits ergonomics better.
All-in-1 CAM Solution: Snapmaker Luban.
The tailor-made software Snapmaker Luban provides concise and easy-to-follow configuration workflow of 3D printing, and laser and CNC machining. Excel in 3 fabrication methods with just 1 software.
Feel Easy. Feel in Command.
More powerful 3D Printing.
Compared with Snapmaker 2.0, Artisan is fully improved in printing speed, precision, filament compatibility and accessibility. High-quality 3D printing is a snap.
Fast and Well.
Thanks to the optimized transmission system and motion control algorithm, Artisan features ± 0.1 mm dimensional accuracy when printing at a high speed of 180 mm/s[3].
Press. Push. Prep for Next.
Dissolvable Support Printing.
Break-away Support Printing.
Double-sided. Multi-talented.
Artisan's new build plate is made of glass with higher flatness, ensuring a smoother and more adhesive first layer. It’s glossy glass on one side and PEI coating on the other side, aiding in adhesion of various filaments.
Higher Performance for Greater Possibilities.
With the improved printing temperature, nozzle hardness and slicing algorithm, Artisan can print with more advanced materials.
More Powerful Laser Engraving and Cutting.
Coming with the latest 10W Laser Module, Artisan is capable of faster and deeper cutting on more materials, and delivering refined laser engraving.
1.6W and 10W Laser Comparison.
The 10W Laser Module can engrave at a speed as high as 6000 mm/min, while cutting through wood as thick as 8 mm in a single pass[5]. To put that into perspective, the cutting speed is up to 8 times that of the 1.6W Laser Module[6].
Engraving Speed (1.5 mm basswood)
Cutting Speed (1.5 mm basswood)
Max Cutting Depth (Paulownia)
Strut Your Stuff and Leave the Rest to Us.
We strive to improve the machine performance while streamlining the workflow, so that you can focus on realizing your ideas and nothing else. It’s powerful yet simple.
Lots of Materials.
From soft materials like leather and fabrics to hard ones like rocks and metal, they can all be your canvas.
More Powerful CNC Carving and Cutting.
Equipped with a 200W CNC Module, Artisan further improves the CNC performance, while keeping the ER11 collet, customized clamp sets and dust-proof design that are highly acclaimed by users, offering you a new desktop CNC experience.
6X Faster CNC Machining.
Compared with Snapmaker 2.0, the CNC module of Artisan has increased by 300% in power and 50% in maximum spindle speed, making it 6 times faster in machining on hardwood like beech.
Power
Max. Spindle Speed
Max. Recommended Machining Speed for Beech
0.2 mm Dimensional Accuracy.
Work It Harder, Make It Better.
You can now choose from a wider variety of materials for CNC as well. The 200W CNC Module is capable of precision machining of hardwood (beech, walnut), jade and other hard materials with ease.
Give Your Ideas A Full Play Even at Home.
Artisan comes with an enclosure that reduces the laser from Class 4 to Class 1.
Your Safety Is in Good Hands.
March for More. March for Marvel.
Artisan is compatible with most Snapmaker modules and addons, including the Rotary Module, Air Purifier, CAN Hub, Snapmaker 2.0 toolheads[9], and impending products such as the 5th-axis Rotary Module. Come explore a broader world of multiplied possibilities.
[1] The work area varies according to the machine functions used. Please check the Specs page for more information.
[2] The UI is subject to change due to iterations.
[3] The test result was obtained by printing a 100 mm × 100 mm × 100 mm cube with PLA filament, and using 0.4 mm nozzle. Dimensional accuracy may vary depending on the testing conditions and product iteration, and is for reference only.
[4] In addition to quick-swap hot end with 0.4 mm brass nozzle, you can also buy 0.2 mm, 0.6 mm, 0.8 mm brass nozzles, as well as hot end with 0.4 mm hardened steel nozzle.
[5] The data is obtained based on the 8 mm paulownia wood. Depending on your material, the cutting depth might vary.
[6] The data are obtained based on the 1.5 mm basswoods, which may vary depending on the testing conditions and product iteration, and is for reference only.
[7] This feature applies to flat and regularly shaped materials. Materials that are transparent, highly reflective or of red and black color might not be applicable.
[8] This data is obtained by cutting beech with a 3.175 mm double flute flat end mill, which may vary depending on the testing conditions and product iteration, and is for reference only.
[9] Please check the FAQ article for more information on modules and addons compatibility.
Specifications
General
Dimensions (Machine)
580 mm × 620 mm × 634 mm
Dimensions (Machine & Enclosure)
665 mm × 943 mm × 705 mm
* The product is sized at 849 mm × 995 mm × 705 mm with filament holders and hose connector mounted. Please take into account the sizes of these parts and the Integrated Controller when estimating the space occupied.
Weight
52.9 kg
Package Weight
34.8 kg (Box A) 31.5 kg (Box B)
Data Transmission Methods
Wi-Fi, USB cable, USB flash drive
Supported Software
Snapmaker Luban, and third-party software
OS Supported by Luban
Windows, macOS, Linux
Linear Module
Motor Driver Chip
TMC2209
Repeatability
± 0.05 mm
X-axis Lead
40 mm
Y-axis Lead
40 mm
Z-axis Lead
8 mm
Integrated Controller
Dimensions
189 mm × 300 mm × 191 mm
Touchscreen Size
7 inches
Power
300W + 450W
OS
Android
3D Printing
Work Area (W × D × H)
350 mm × 400 mm × 400 mm (Dual Nozzle)
Dimensional Accuracy[10]
± 0.1 mm
Nozzle Diameter (Standard)
0.4 mm
Nozzle Diameter (Optional)
0.2 mm, 0.6 mm, 0.8 mm
Nozzle Material (Standard)
Brass
Nozzle Material (Optional)
Hardened steel
Max. Nozzle Temperature
300°C
Max. Recommended Printing Speed
180 mm/s
Build Plate
Double-sided PEI-coated Glass
High-temperature Zone (Inner Zone)
260 mm × 260 mm
Max. Heated Bed Temperature (Inner Zone)
110°C
Max. Heated Bed Temperature (Outer Zone)
80°C
Supported Materials[11]
PLA, ABS, ASA, PETG, TPU (Hardness > 90 Shore A), Breakaway PLA, PVA, HIPS, Nylon, Carbon Fiber Reinforced Nylon, Glass Fiber Reinforced Nylon
Supported Formats
stl, obj
Laser Engraving and Cutting
Work Area (W × D)
400 mm × 400 mm
Power
10W
Laser Type
450 nm–460 nm Semi-conductor
Max. Engraving Speed
100 mm/s
Max. Cutting Depth (Paulownia)
8 mm
Operating Temperature
0°C–35°C
Laser Spot Dimension
0.05 mm × 0.2 mm
Supported Materials for Engraving
Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Ceramics, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Supported Materials for Cutting
Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Supported Formats
stl, svg, png, jpg, jpeg, bmp, dxf
CNC Carving and Cutting
Work Area (W × D)
400 mm × 400 mm
Power
200W
Max. Spindle Speed
18,000 RPM
Max. Work Speed[12]
50 mm/s (Beech); 33 mm/s (Acrylic)
Maximum Stepdown
2 mm (Beech); 1 mm (Acrylic)
Shank Diameter
0.5 mm–6.35 mm
Supported Materials
Hardwood (Beech, Walnut), Softwood, HDF, MDF, Plywood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB
Supported Formats
stl, svg, png, jpg, jpeg, bmp, dxf
[10] The test result was obtained by printing a 100 mm × 100 mm × 100 mm cube with PLA filament, and using 0.4 mm nozzle. Dimensional accuracy may vary depending on the testing conditions and product iteration, and is for reference only.
[11] Hardened steel nozzle should be used when printing with nylon and reinforced nylon filaments.
[12] The data is obtained by cutting beech with 3.175 mm Double Flute Flat End Mill and Acrylic with 3.175 mm Single Flute Flat End Mill. Depending on the CNC bits and materials used, the cutting speed might vary.
In the Box
Box A
Integrated Controller × 1
Dual Extrusion Module × 1
10W Laser Module × 1
200W CNC Module × 1
Toolhead Quick-swap Bracket × 1
Tool Box × 1
Z-axis Linear Module × 2
X-axis Linear Module × 1
Y-axis Linear Module × 2
Base Plate × 1
AC Power Cable × 1
USB Cable × 1
Toolhead Cable × 1
Heated Bed Cable × 1
Enclosure Cable × 1
Cable Collector × 1
Hose × 1
Hose Clamp × 1
Base Fixture × 2
Cable Pass-through Fixture × 1
Laser Material Fixture × 4
Sealing Plug × 4
Sealing Strip × 1
Filament Tube × 2
Filament Tube Holder × 2
M4 Wing Nut × 4
Cable Clip × 3
Filament Tube Clip × 2
L Bracket × 1
Filament Holder Base × 2
Filament Holder Tube × 2
CNC Safety Goggles × 1
Calibration Card × 1
Quick Start Guide × 1
Wiping Cloth × 1
Enclosure Screws
Machine Screws
Box B
Side Panel × 2
Door Panel × 1
Top Panel Kit × 1
Back Panel × 1
Exhaust Fan × 1
Hose Connector × 1
Column-1 (with hinge) × 1
Column-2 (with hall switch)
× 1
Column-3 (with Enclosure converter) × 1
Column-4 × 1
Beam × 4
Profile Connector × 4
Door Handle × 1
Auxiliary Board × 1
Laser Engraving and Cutting Platform × 1
CNC Carving and Cutting Platform × 1
3D Printing Platform × 1
Support Platform × 1
X-axis Connector × 2
Z-axis Holder × 2
Breakaway Support for PLA × 1
Black PLA Filament × 1
HDF Sheet × 1
Basswood Sheet × 1
Cord Collecting Strip × 1
-
