Name: TPU 95A HF Filament (RFID) - 1kg
Brand: Snapmaker
SKU: 34176
Price: 41.99 EUR
Availability: InStock

1 44

TPU 95A HF Filament (RFID) - 1kg

Snapmaker TPU 95A HF

Flexible yet Tough

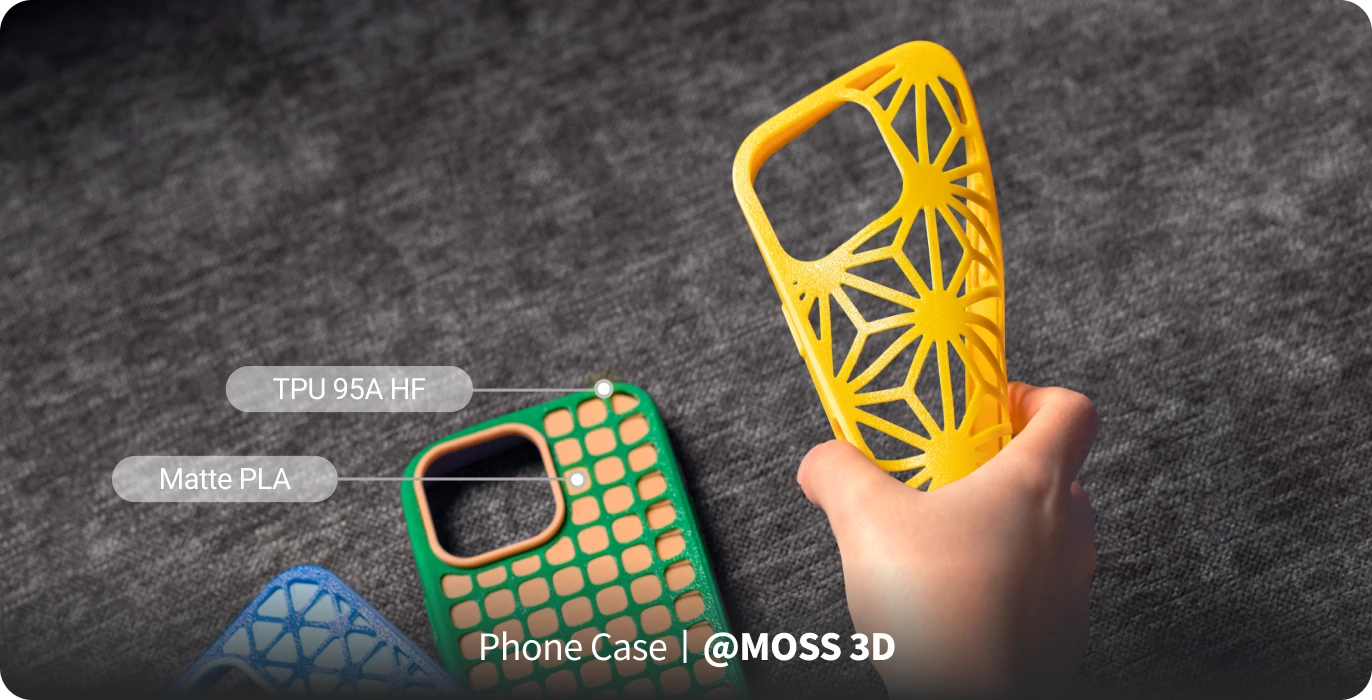

Snapmaker TPU 95A HF is flexible enough to bend and twist, yet tough enough to retain durability over repeated use. Ideal for printing phone cases, protective covers, and other pliable yet durable accessories.

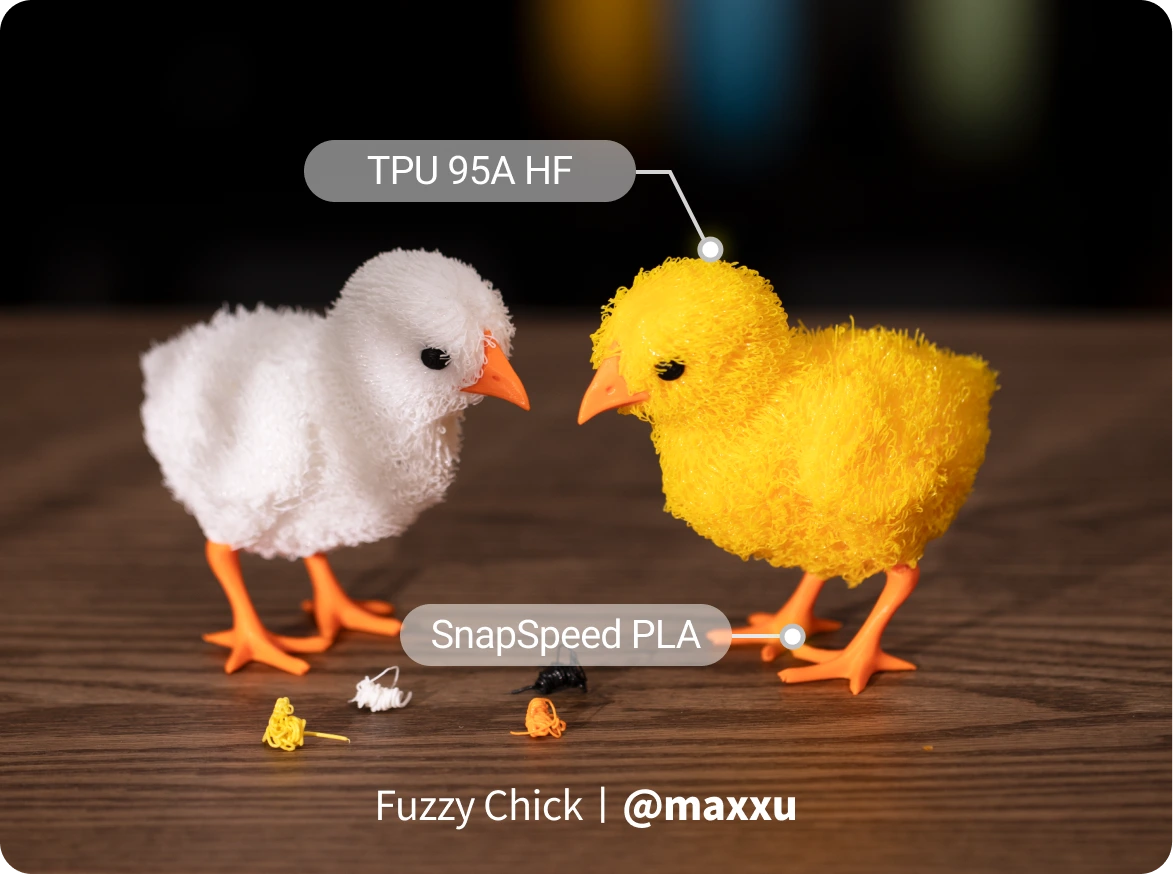

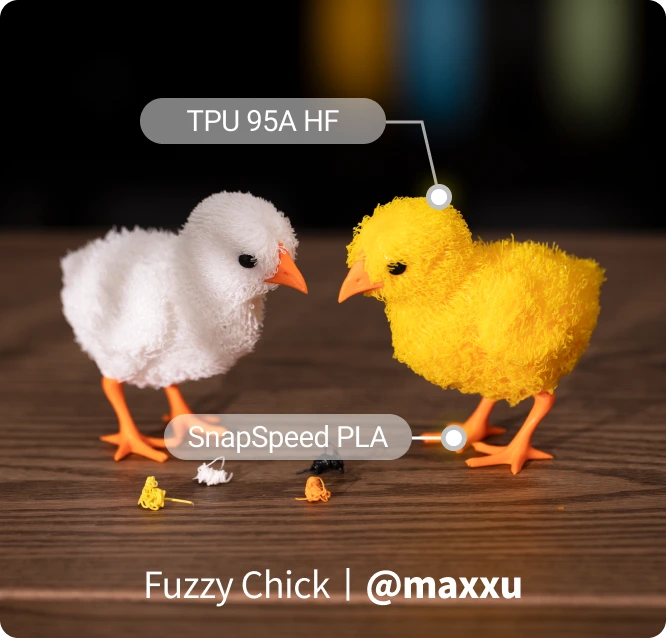

Fuzzy chick model printed with TPU 95A HF Filament for soft texture and flexible detail.

TPU 95A HF Filament squishy donut shows soft, bendable strength for playful accessories.

High-speed Printing

Featuring a high-flow formula that enables significantly faster printing than regular TPU, this filament supports speeds of up to 200 mm/s—helping you finish flexible prints in less time while maintaining clean, consistent results.

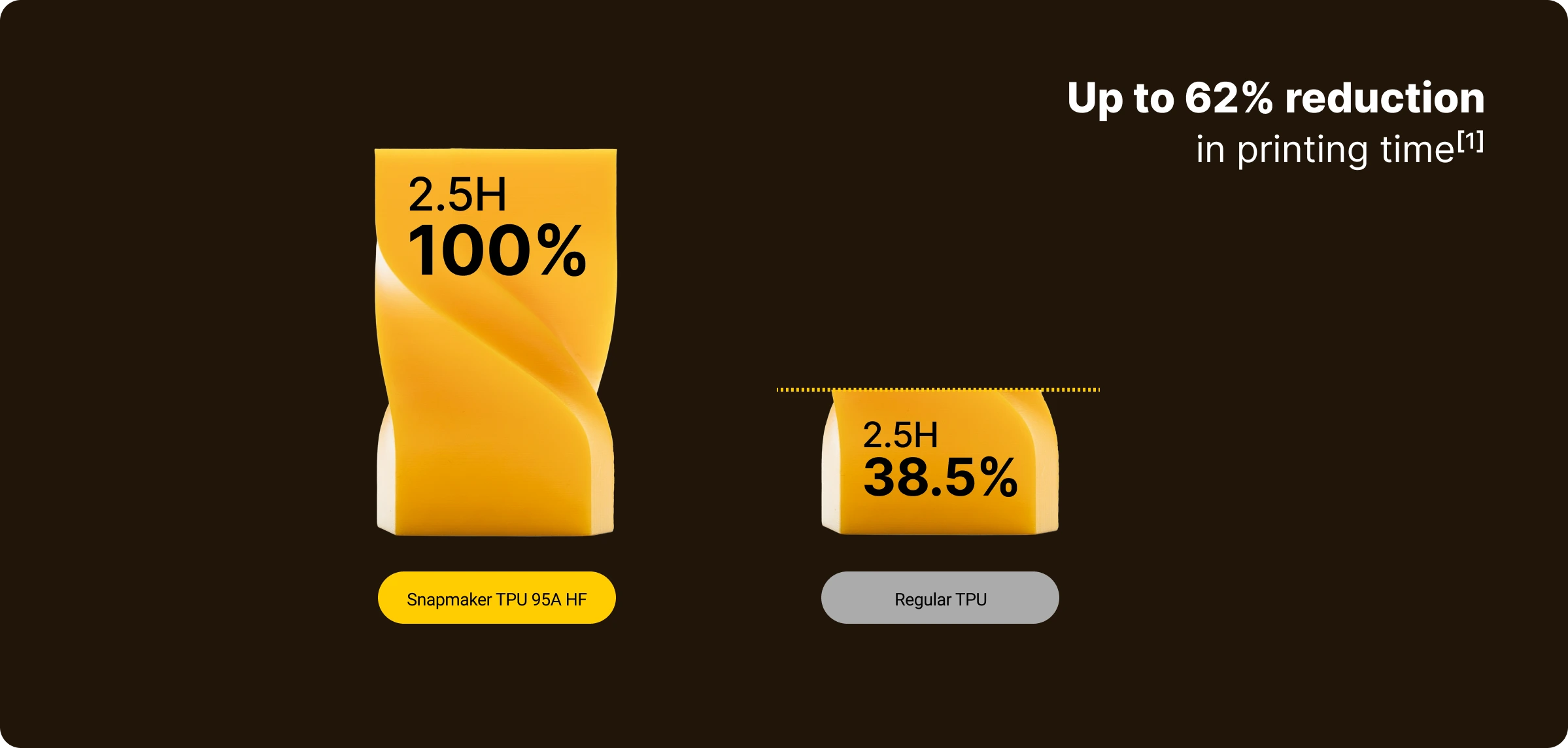

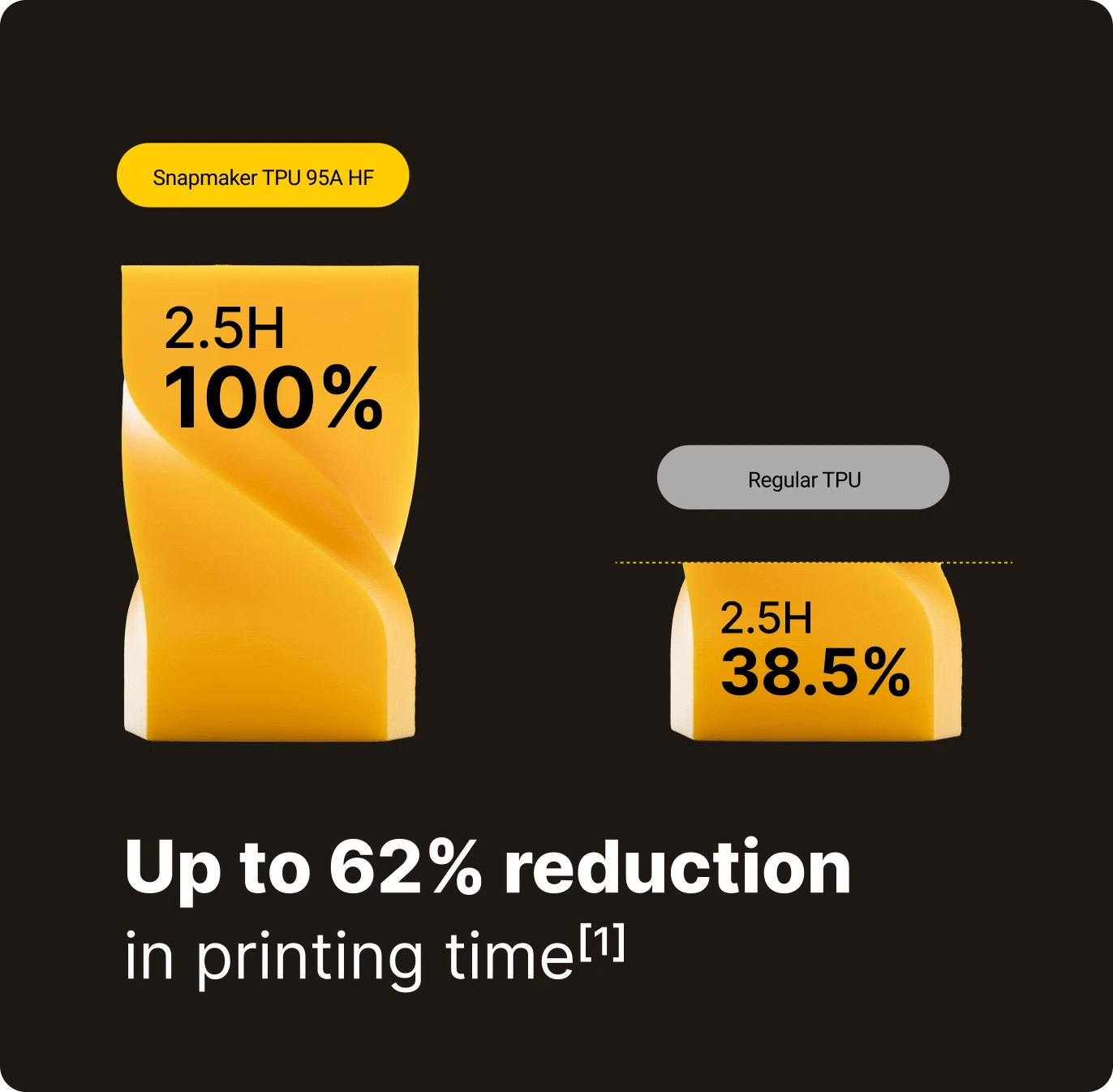

Performance comparison of Snapmaker TPU 95A HF and regular TPU, highlighting faster 3D printing speeds.

Cushioning and Shock Absorption

Snapmaker TPU 95A HF combines flexibility with reliable shock absorption, making it ideal for anti-slip pads, gaskets, and other protective parts that need cushioning, grip, and long-term durability.

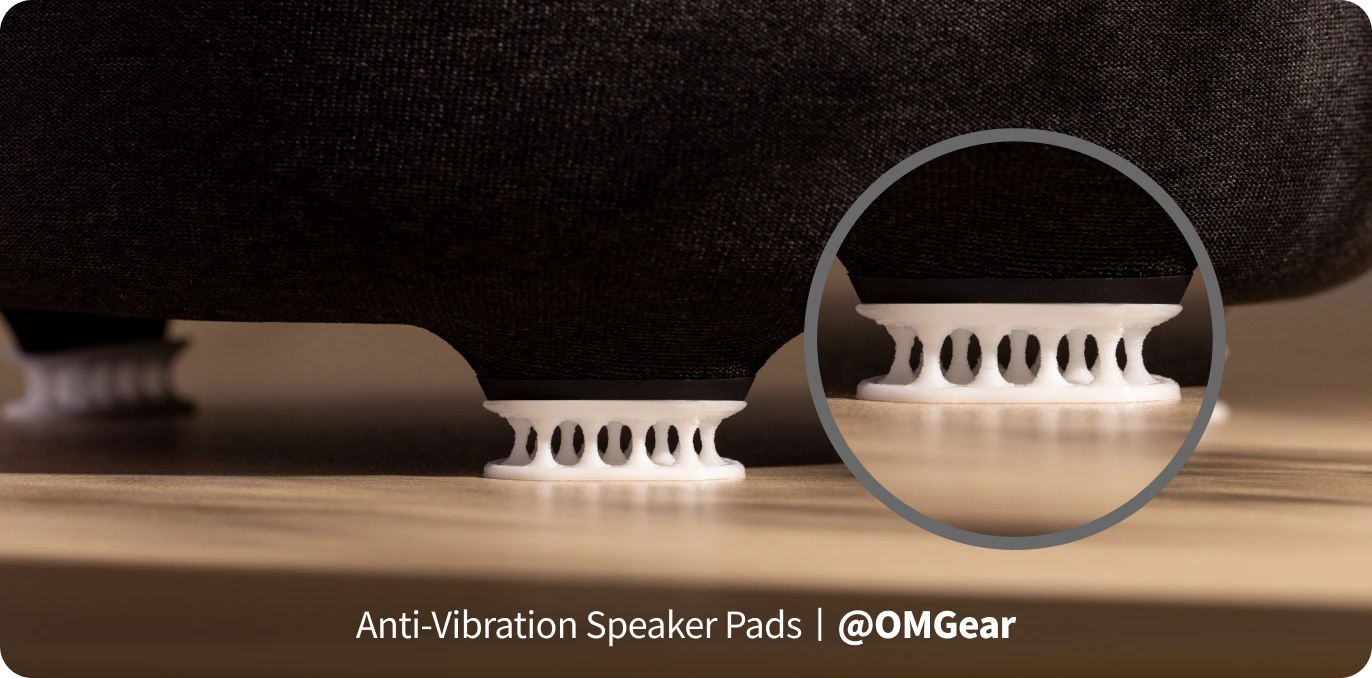

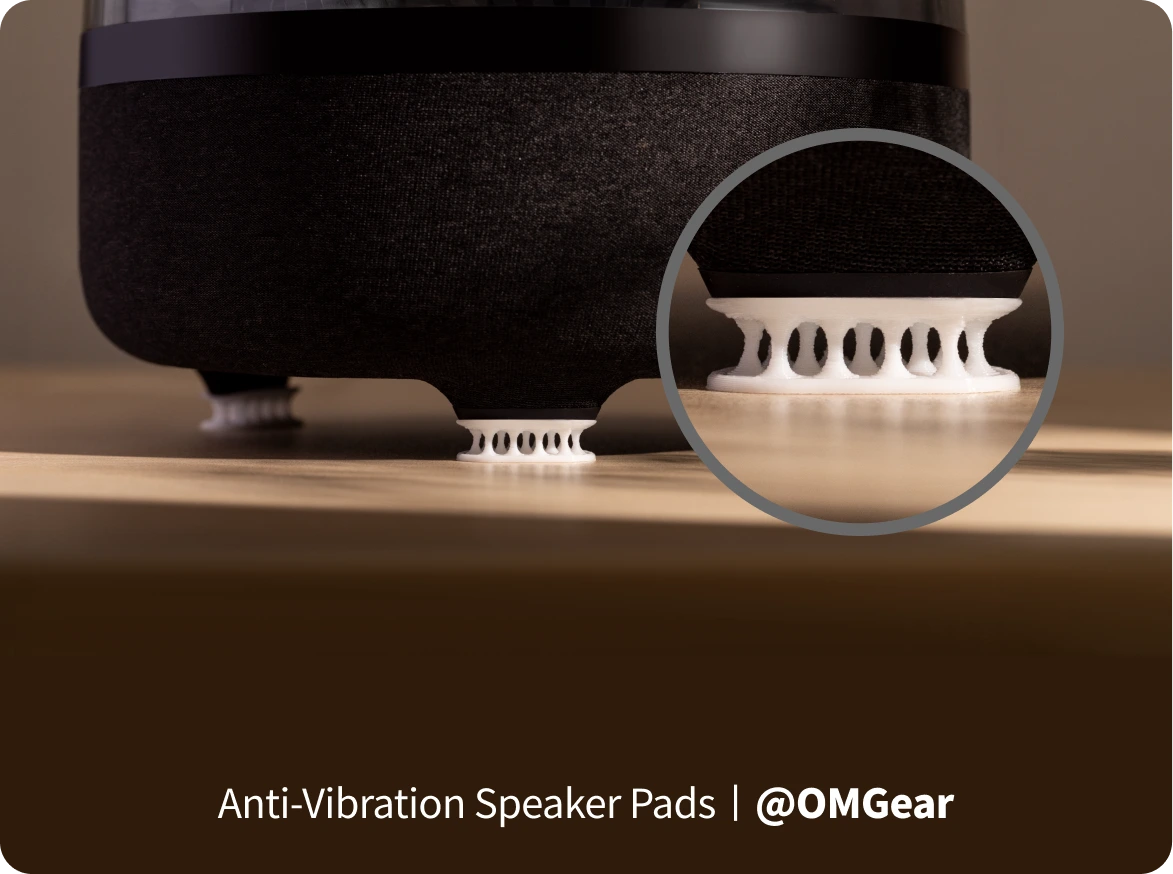

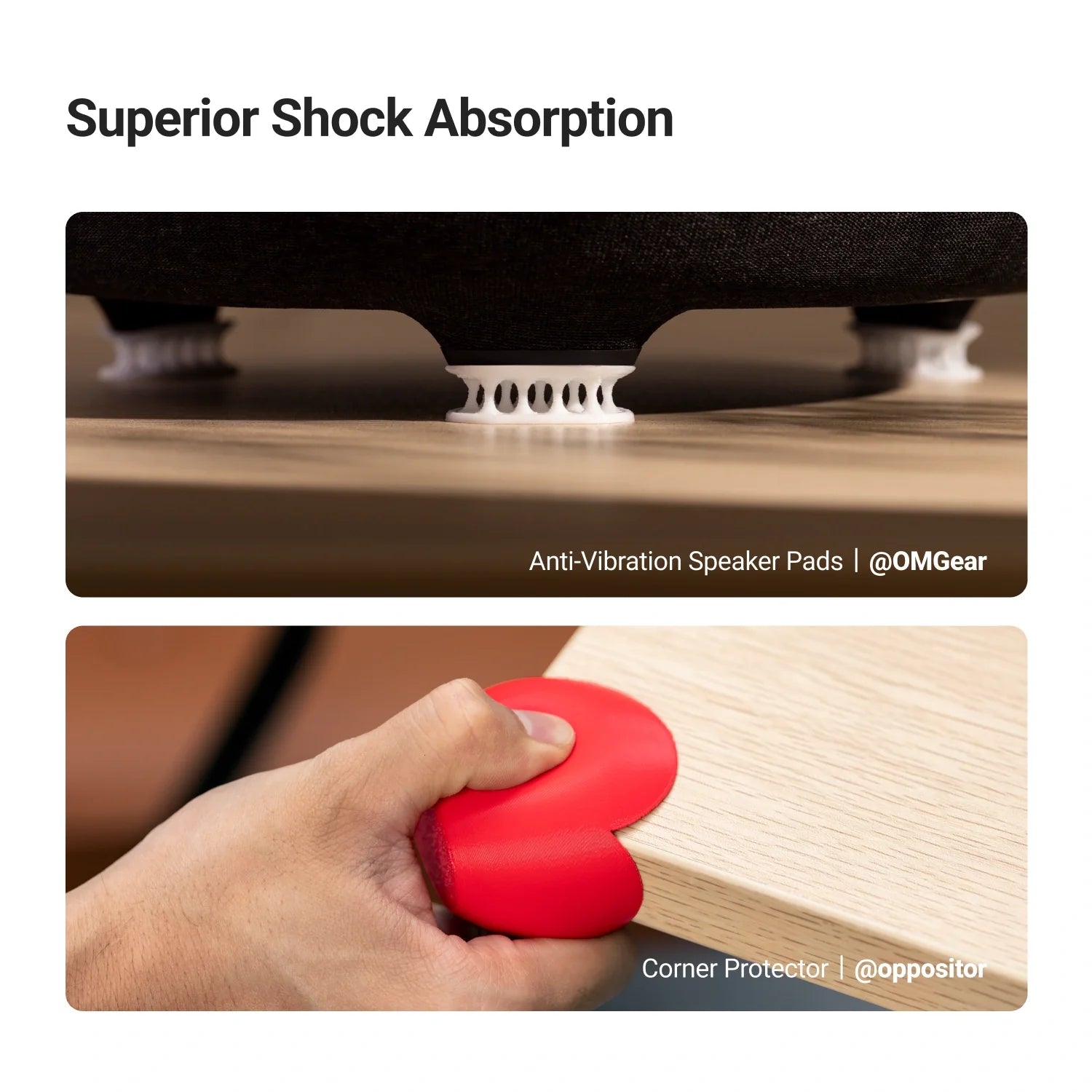

Snapmaker TPU 95A HF speaker pads, showing vibration reduction and impact absorption.

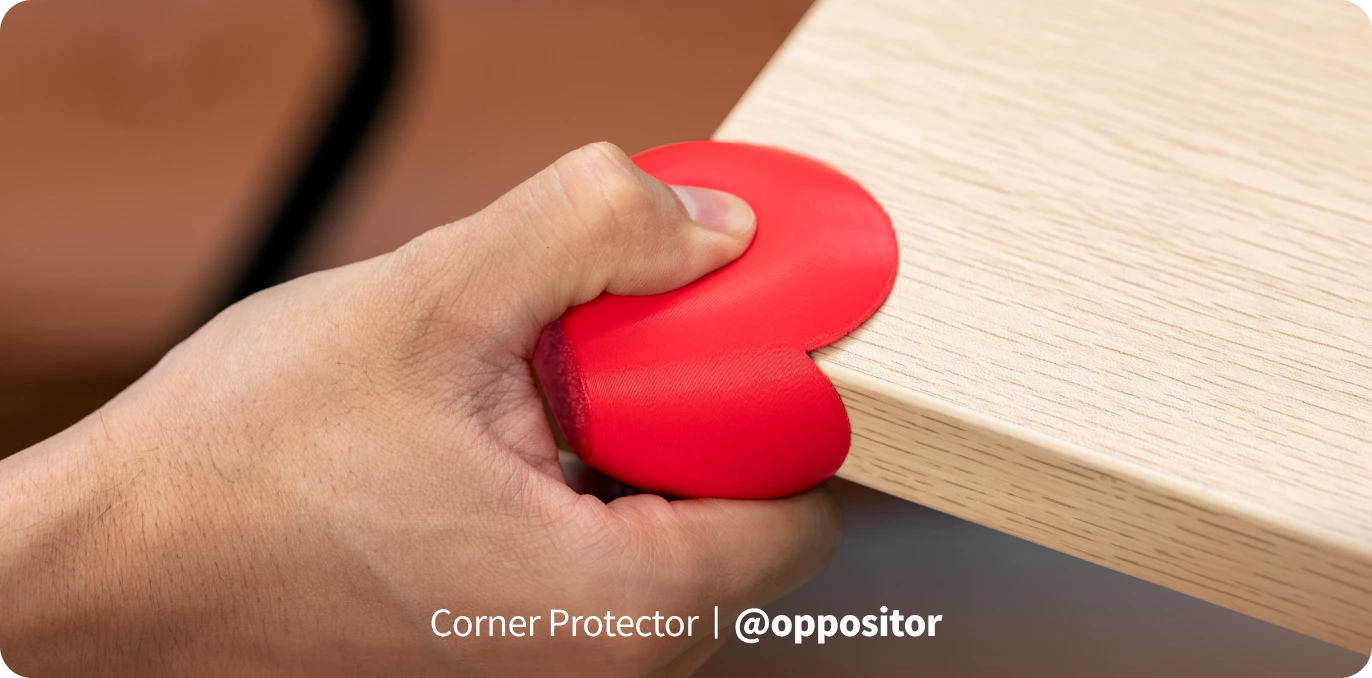

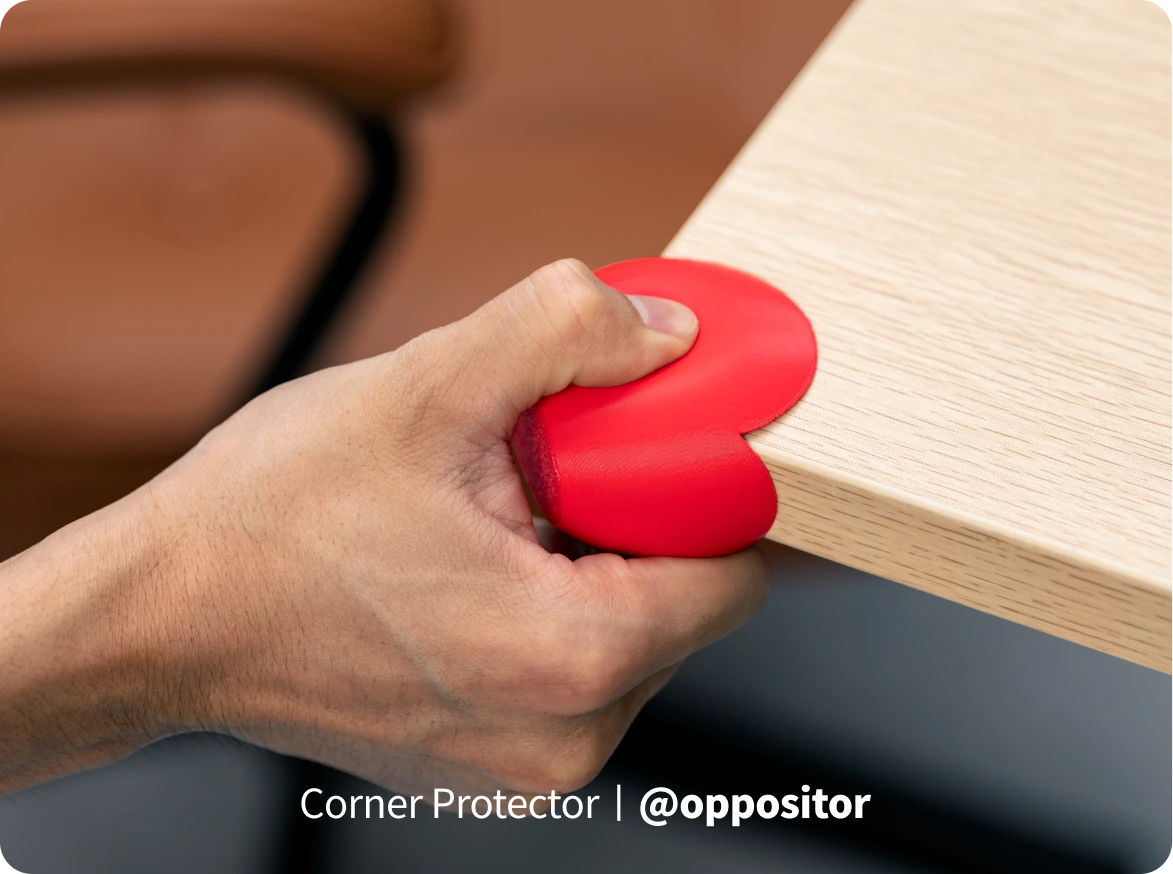

Red TPU 95A HF corner guard pressed by hand to demonstrate flexible shock absorption.

Clean Surface, Less Stringing

Featuring an optimized formula, Snapmaker TPU 95A HF reduces stringing compared with regular TPU 95A, helping deliver smoother surfaces and cleaner details.

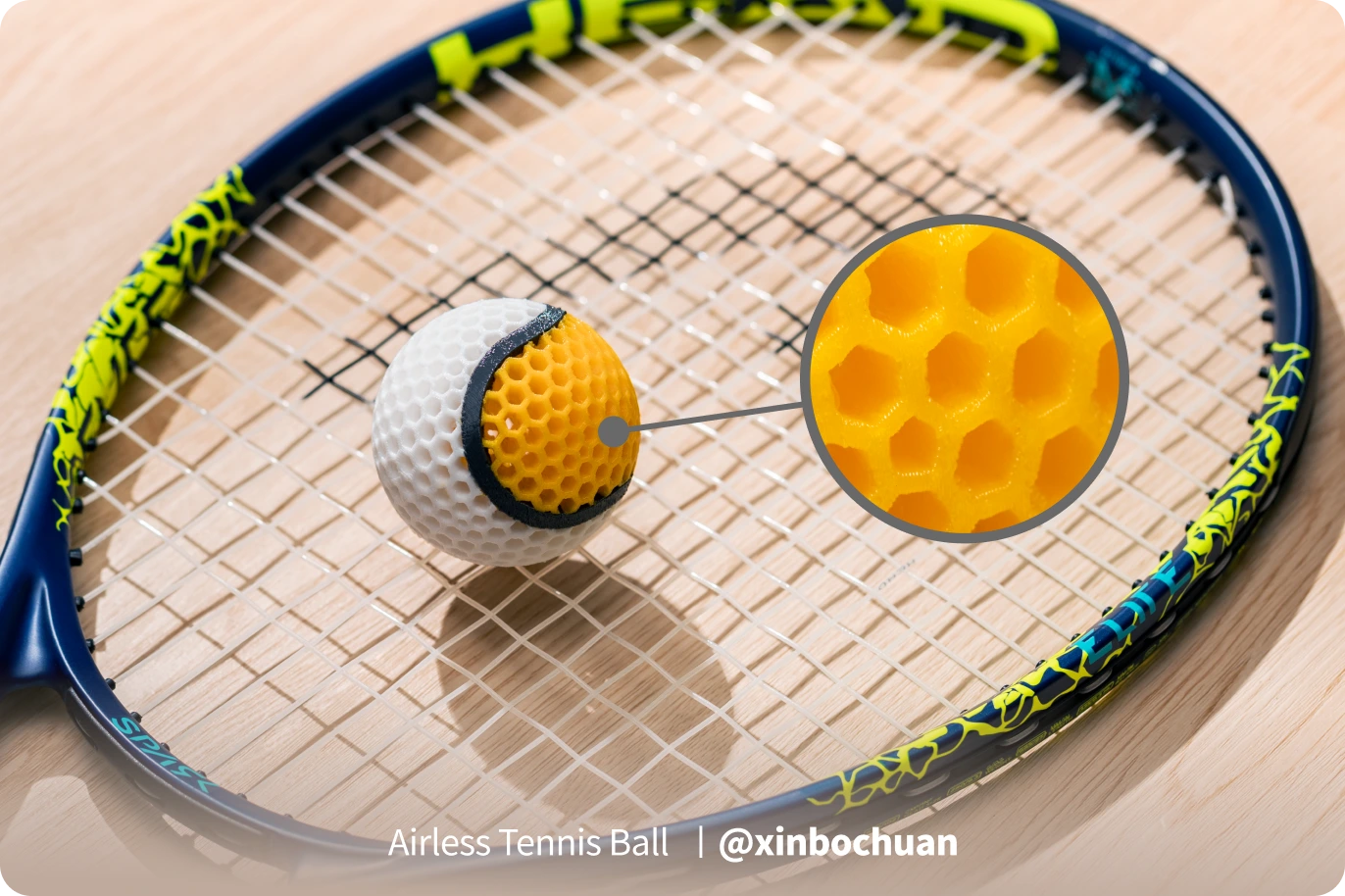

TPU 95A HF airless tennis ball with a smooth 3D-printed surface and reduced stringing.

Versatile Colors for Everyday Use

From understated neutrals to eye-catching accents, Snapmaker TPU 95A HF offers practical color options for everyday flexible printing.

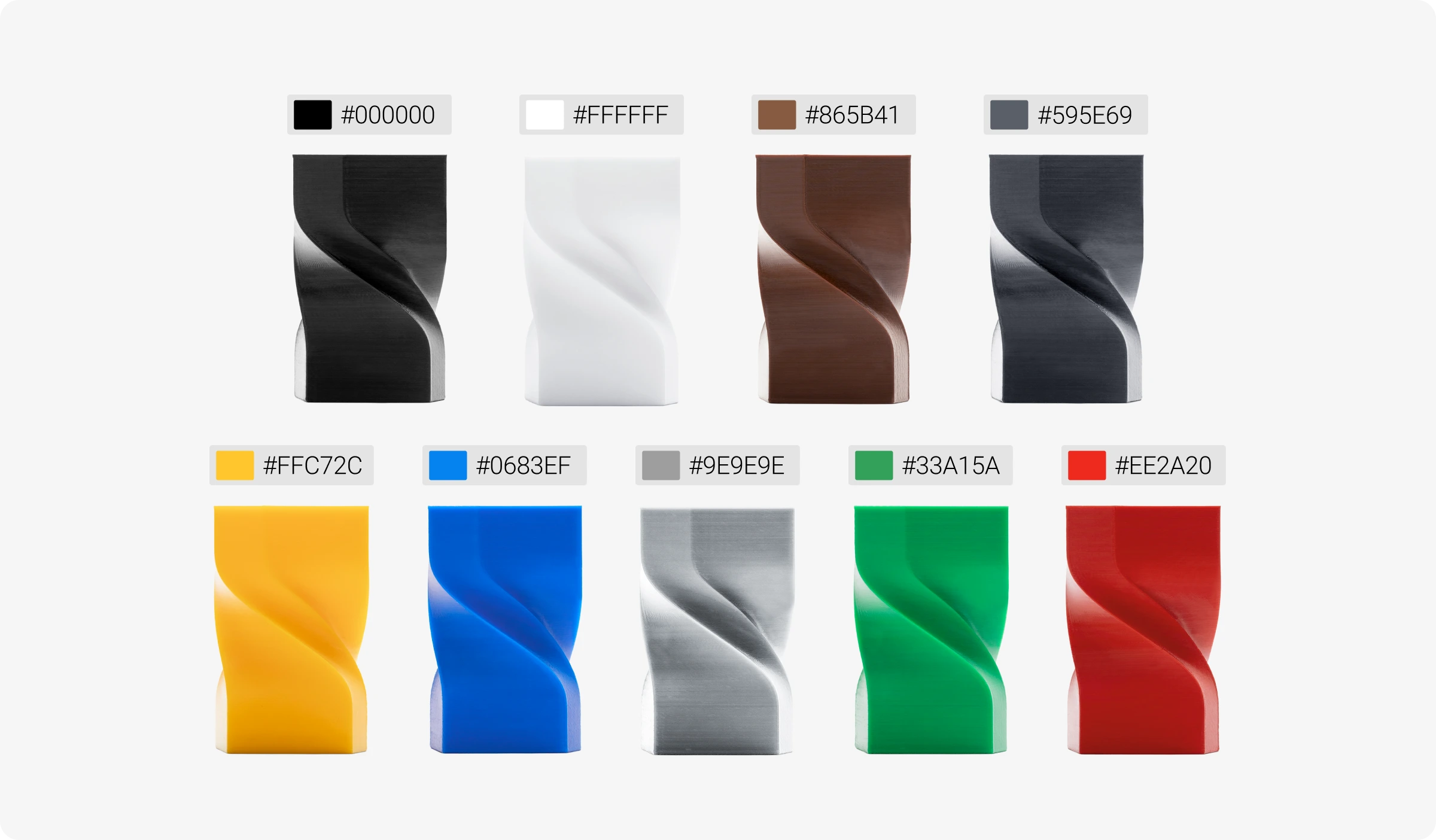

Snapmaker TPU 95A HF filament in multiple colors, ideal for everyday flexible 3D printing projects.

Color swatches of various shades displayed in a wave-like pattern.

RFID Recognition^[2]

When used with the Snapmaker U1, the printer automatically loads preset filament information so you don’t need to adjust settings manually, making printing easier than ever.

Quality in Every Detail

Sustainability, Without Compromise

Both filament and spool are crafted from 100% recyclable materials, balancing eco-friendly values with superior print reliability.

Printing Tips

1. Drying, Storage & Protection

• Pre-Drying: TPU is extremely hygroscopic and must be dried before use. The recommended drying settings are 70°C for 6 hours.
• Storage & Protection: During both daily storage and the printing process, the filament should always be kept in a sealed container with desiccant. For optimal print quality, we recommend using the SnapDryer while printing.

2. Printing

• Feeding: Due to its flexibility, TPU requires precise control during feeding and retraction. To minimize the risk of print failure, we strongly recommend watching our video guide before your first print.
• Surface Quality Tip: For bubbles or stringing, please dry the filament thoroughly. If stringing persists, try adjusting your settings by reducing the retraction distance.
• Removal: TPU tends to over-adhere to the build plate, which may damage the model surface during removal. It is recommended to apply a glue stick to the platform before printing to act as a release layer for easier removal.

Specifications

Recommended Printing Conditions

* Based on 0.4 mm nozzle. Printing conditions may vary with different nozzle diameters.

Nozzle Temperature

200–250°C

Bed Temperature

25–50°C

Cooling Fan

10%–50%

Printing Speed

40–200 mm/s

Drying Settings Before Printing

70°C for 6 h

Physical Properties

Density

1.216 g/cm³ (23°C)

Melt Index

28.5 g/10 min (210°C, 2.16 kg)

Melting Temperature

177.29°C (DSC, 10°C/min)

Glass Transition Temperature

-18.56°C (DSC, 10°C/min)

Saturated Water Absorption Rate

0.686% (25°C, 55% RH)

Shore Hardness

95A

Mechanical Properties

Tensile Strength (Z)

18.64 ± 0.64 MPa

Breaking Elongation Rate (Z)

459.25 ± 18.09%

Bending Modulus (X-Y)

64.19 ± 3.17 MPa

Bending Strength (X-Y)

3.20 ± 0.07 MPa

Recommended Printing Conditions

*Based on a 0.4mm nozzle. Printing conditions may vary with different nozzle diameters.

Nozzle temperature

200–250°C

Bed Temperature

25–50°C

Cooling Fan

10%–50%

Printing speed

40–200 mm/s

Drying Settings Before Printing

70°C for 6 h

Physical Properties

Density

1.216 g/cm³ (23°C)

Melt index

28.5 g/10 min (210°C, 2.16 kg)

Melting Temperature

177.29°C (DSC, 10°C/min)

Glass Transition Temperature

-18.56°C (DSC, 10°C/min)

Saturated Water Absorption Rate

0.686% (25°C, 55% RH)

Shore Hardness

95A

Mechanical Properties

Tensile Strength (Z)

459.25 ± 18.09%

Breaking Elongation Rate (Z)

459.25 ± 18.09%

Bending Modulus (X-Y)

64.19 ± 3.17 MPa

Bending Modulus (Z)

3.20 ± 0.07 MPa

In the Box

Sealed Spool Filament × 1

Desiccant × 1

Paper Packaging Box × 1

Yellow 3D printing filament spool next to its packaging.

Sealed Spool Filament × 1

Desiccant × 1

Paper Packaging Box × 1

Note:
[1] Actual print speeds may vary depending on model complexity and settings. Model Dimensions: 66.5 × 63.5 × 98.5 mm³; Printer: Snapmaker U1; Nozzle Diameter: 0.4 mm; Nozzle Temperature: 230 °C; Layer Height: 0.2 mm; Infill Density: 15%
[2] RFID function is only available for the Snapmaker U1.

Frequently Asked Questions

1. Is a Top Cover required for TPU 95A HF?

No, it is not required.

2. Is a Hardened Steel Hot End required for TPU 95A HF?

No, it is not required.

3. Do I need to dry TPU 95A HF before printing or keep it continuously dried?

It is necessary to dry TPU 95A HF before printing. TPU is highly moisture-sensitive, and absorbed moisture can lead to issues such as stringing, bubbling, and inconsistent extrusion.
For optimal print quality, it is also necessary to keep the filament continuously dried during printing and storage.
For best results, it is recommended to use a filament dryer such as the SnapDryer throughout both pre-print drying and the printing process.

4. Build Plate Recommendation

Build Plate	Recommendation
U1 Textured PEl Steel Plate	Recommended
U1 Smooth PEI Steel Plate	Clue is required for proper bed adhesion and reliable printing
U1 Graphic Effect Steel Plate	Not Recommended

5. TPU Basic VS TPU 95A HF

Comparison Dimensions	TPU Basic	TPU 95A HF
Flowability	Lower (soft & sticky)	Higher (easier extrusion)
Recommended Print Speed	20–40 mm/s	60–150 mm/s
Feeding Quality	Prone to slipping/jamming	More stable
Stringing	Pronounced	Improved
Retraction Response	Poor (typical for soft materials)	More controllable
Printing Difficulty	High (especially for beginners)	Significantly reduced
Equipment Requirement	High (direct drive recommended)	More compatible and user-friendly
Elastic Performance	Standard TPU elasticity	Similar (smoother in some cases)

6. How can I reduce stringing?

To reduce stringing effectively, you can optimize the following:
• Dry the filament thoroughly and ensure it remains moisture-free during use, as moisture is a key cause of stringing
• Slightly reduce the printing temperature to minimize material oozing
• Slightly increase the retraction distance to improve control of filament flow during travel moves

7. How can I reduce nozzle clogging issues?

To reduce the risk of nozzle clogging, you can optimize the following:
• Reduce the retraction distance (or disable it if necessary), as excessive retraction may cause heat creep and filament softening
• Use a hanging spool setup to minimize feeding resistance and ensure smoother filament delivery
• Ensure stable and consistent filament feeding to avoid unnecessary strain on the extrusion system

TPU 95A HF Filament (RFID) - 1kg

Featured RFID Filament

PETG HF Filament (RFID) - 1kg

Silk PLA Filament (RFID) - 1kg

SnapSpeed PLA Filament (RFID) - 1KG

Matte PLA Filament (RFID) - 1KG

Black Nylon Filament (1kg)

Fast Local Shipping

2-Year Warranty

Easy Returns

30-Day Price Match

Snapmaker TPU 95A HF

Flexible yet Tough

High-speed Printing

Cushioning and Shock Absorption

Clean Surface, Less Stringing
