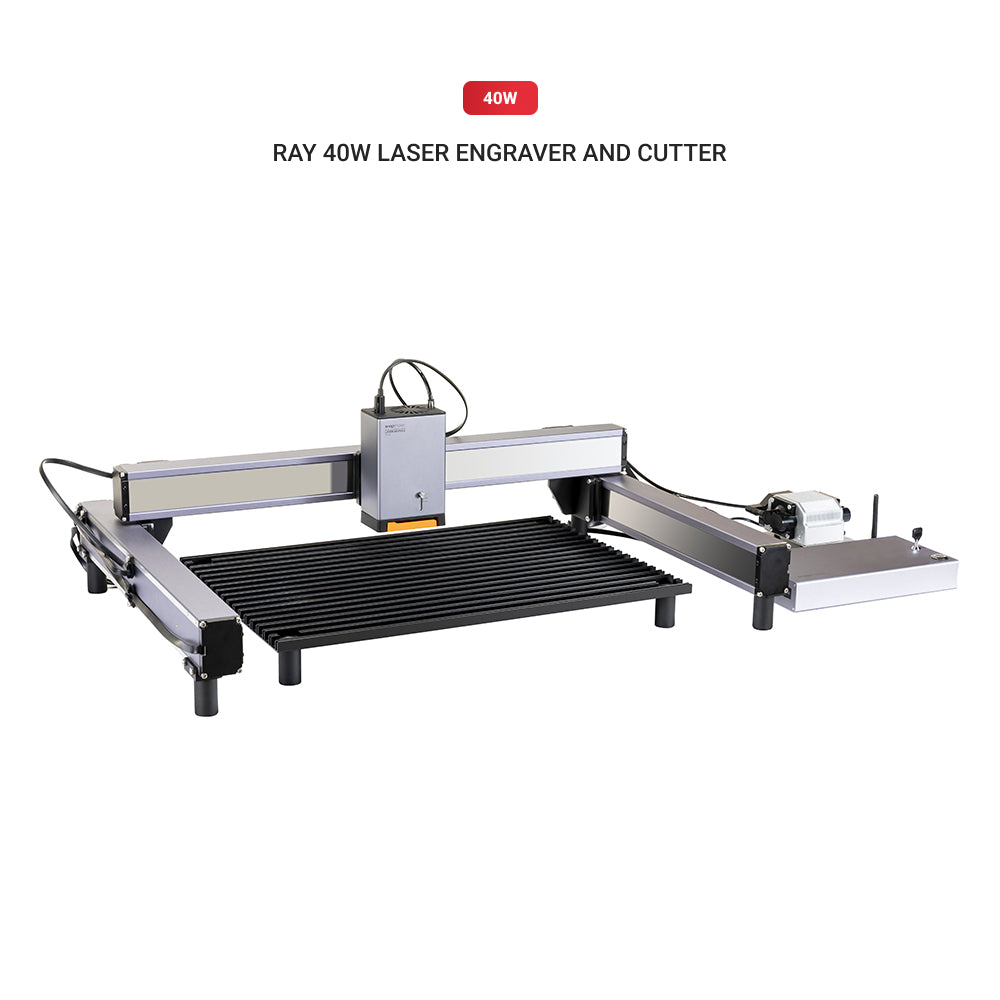

Snapmaker Ray 40W Laser Engraver and Cutter with Air Assist (VAT Incl.)

Name: Snapmaker Ray 40W Laser Engraver and Cutter with Air Assist (VAT Incl.)
Brand: Snapmaker
SKU: 80102
Price: 1169.0 EUR
Availability: OutOfStock
Rating: 5.0 (6 reviews)

€1.399,00 EUR ~~€1.799,00~~

Flash Sale

Hurry! Only - units left in stock!

Ends in

DAY

HRS

MIN

00 SEC

Product Overview

• Strong Laser Cutting: 40W Laser Power, Smart Air Assist
• Large Work Area: 400mm × 600mm
• Laser Class 1 Safety Certified by FDA: Laser-proof Enclosure panels, Embedded Door-detection Sensor
• Well-built Hardware: Industrial-grade Linear Rail
• Compatibility: Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module (Harmonic Drive Version), Emergency Stop Button

FAQ
Quick Start Guide of Snapmaker Ray

Read Snapmaker Ray Early Adopter Feedback.

Learn More Hide

Select Option

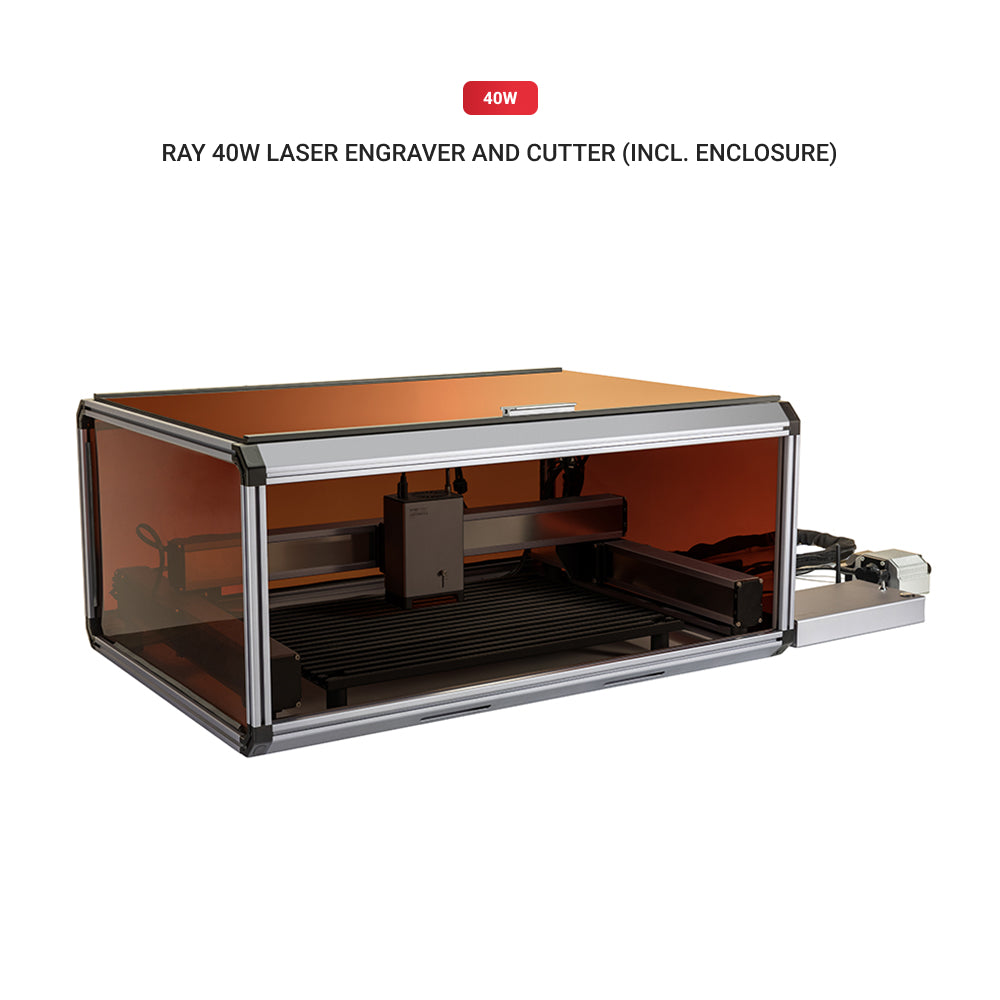

Ray 40W Laser Engraver and Cutter + Enclosure

Ray 40W Laser Engraver and Cutter

Product variants

Payment methods

Delivery

Orders will be shipped in 1-3 business days.

Free shipping on orders over €89 (U1 excluded).
VAT INCLUSIVE & EU local warehouse delivery in 3-7 business days.

Customer Reviews

Linh Tran

As one of lucky people to get Ray early, I have a good chance to run & test it for a while. I ordered 40W & Ray separately, no enclosure (I will share my modification on A350 Enclosure to adapt with Ray later). Here come the unbox of what you will get when arrive! Pro: High end-finish, smooth surface, no sharp edge. Hard to mismatch or wrong installation. Con: Lack of Assembly Instruction as hard copy and some items we have no idea how to use with.

Steven Theiss

My 2nd project with my Ray, and my first try at using a laser to 3D "carve". The max pocket depth in this image is about 3.3mm. I still need to work out how to differentiate between regions that are dark because they're farther back, and ones that are dark because of shadows (under his nose) or actual darkness in the image (like his stripes). Probably need to start with something a bit less inherently "contrasty". Super-impressed with what this thing can do!

Candle Jurgensen

Order filled on the Ray for a School. Acacia Wood. Engravings are tactile and stunning. 24 mins for 4x coasters at a time (could have done a lot more, but did them in small batches for quality control). Box done on the Ray as well - 27 mins for it all.

Snapmaker Ray 20W & 40W Laser Cutter

Customer Reviews

Linh Tran

Steven Theiss

Candle Jurgensen

Diode Laser

Max. Work Speed

Industrial-grade Linear Rails

Laser Vectors in Luban

Work Area

Smart Air Assist

Snapmaker Ray 40W's FDA Class 1 certified safety enclosure ensures operational safety, protecting users during laser activities.

Laser Class 1 Safety

Features highlights.

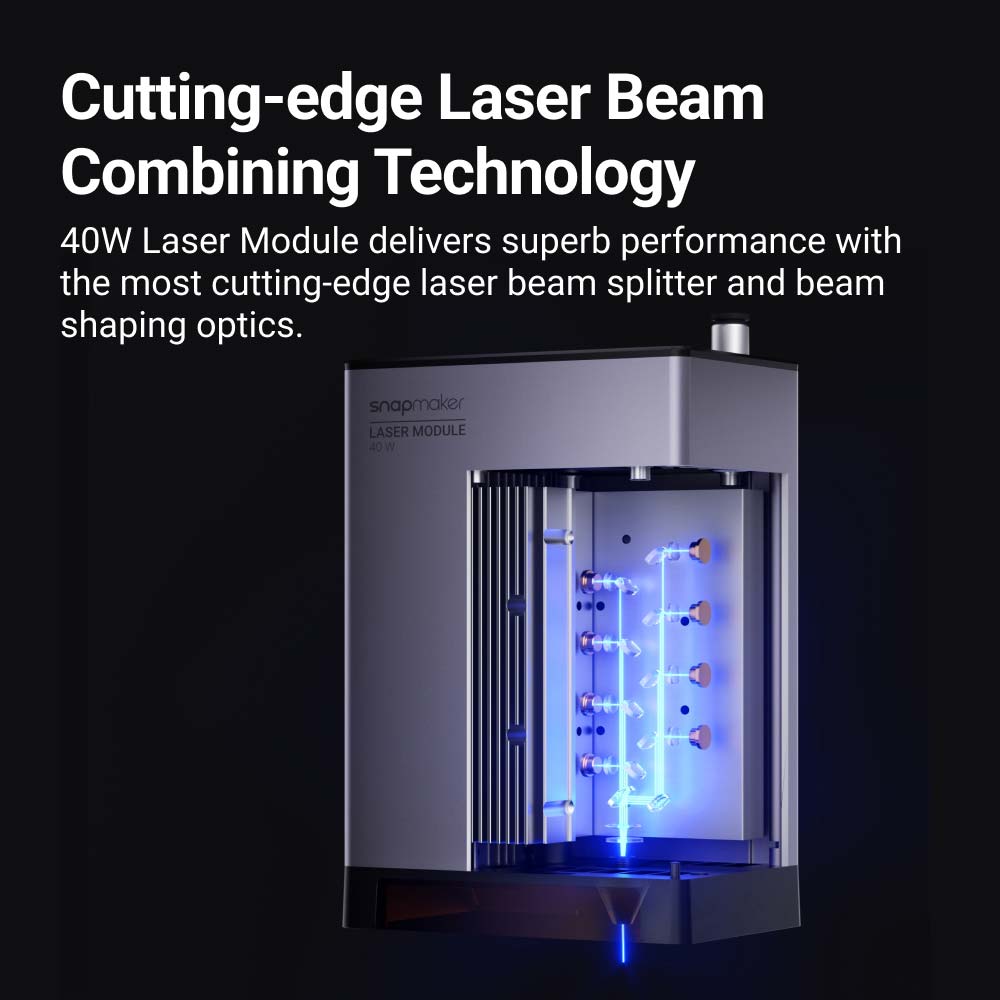

Internal view of Ray 40W Laser Module reveals its sophisticated beam combining and shaping technology for precise results.

Cutting-edge laser beam combining technology.

40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics.

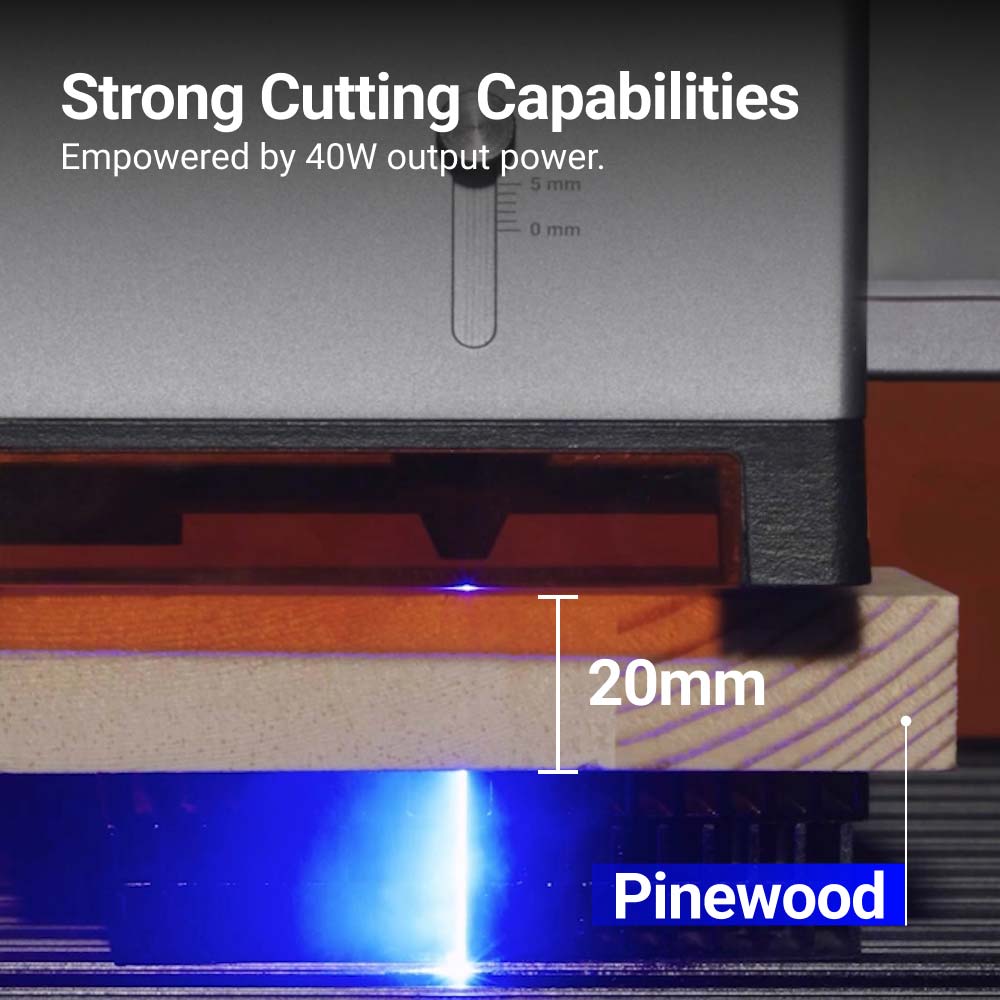

Demonstrating formidable cutting power, the Snapmaker Ray 40W can effortlessly cut through 20mm thick pinewood.

Strong cutting capabilities.

Empowered by 40W output power.

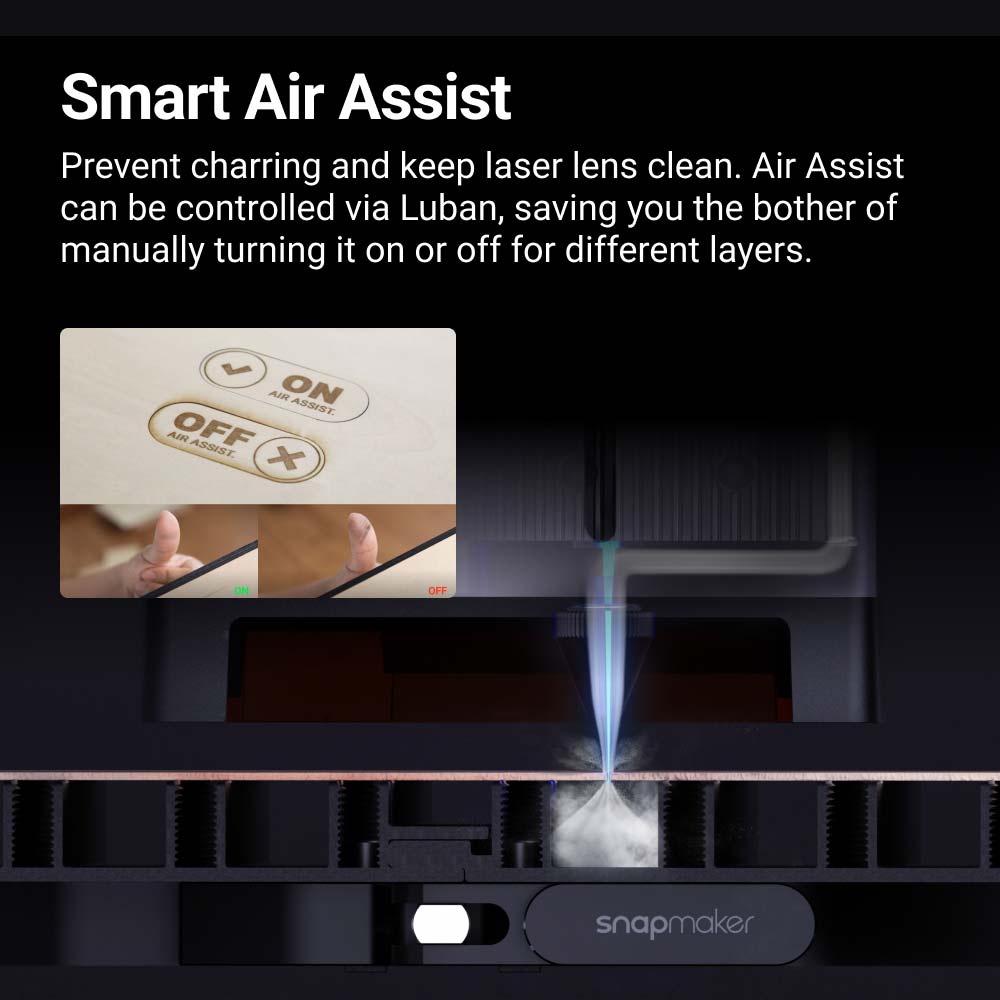

Achieve cleaner cuts with Air Assist.

1. Air gets pumped in.
2. Blow the fumes away and prevent charring.
3. Keep the laser lens clean.
4. Fumes get channeled out through grid table.

Air Assist system in the Snapmaker Ray 40W boosts cutting precision and efficiency, perfect for intricate projects.

400mm × 600mm.

You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as thick as 160mm.

Snapmaker Ray 40W's expansive work area can adjust to accommodate projects up to 160mm thick.

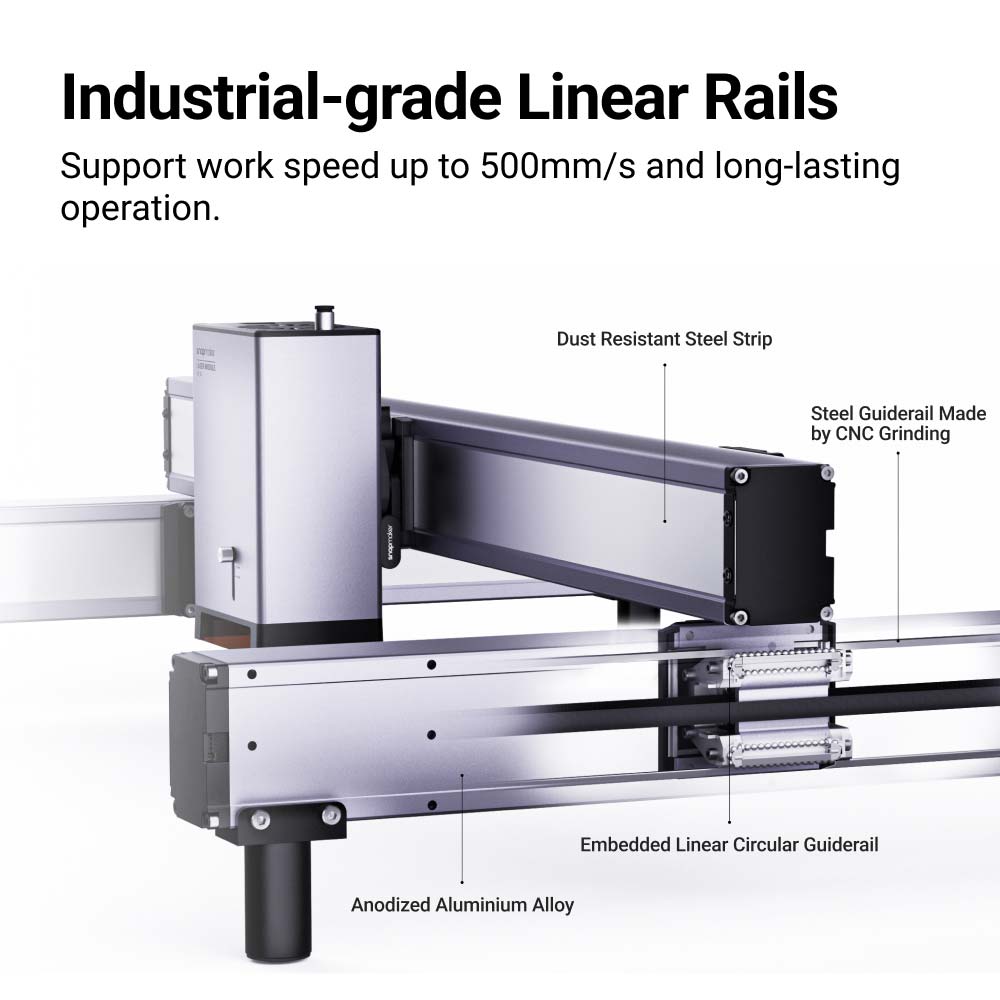

Industrial-grade Linear Rails.

Support work speed up to 500mm/s and long-lasting operation.

Snapmaker Ray's linear rails support speeds up to 500mm/s, providing long-lasting performance and rapid movement.

500mm/s Max. Work Speed.

Support work speed up to 500mm/s and long-lasting operation.

With a maximum speed of 500mm/s, the Snapmaker Ray 40W achieves fast, high-precision cutting and engraving.

Compatible with LightBurn.

Support features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn.

1000+ laser vectors in Luban.

Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

With over 1000 laser vectors available in Luban, Ray 40W supports precise and creative engraving and cutting tasks.

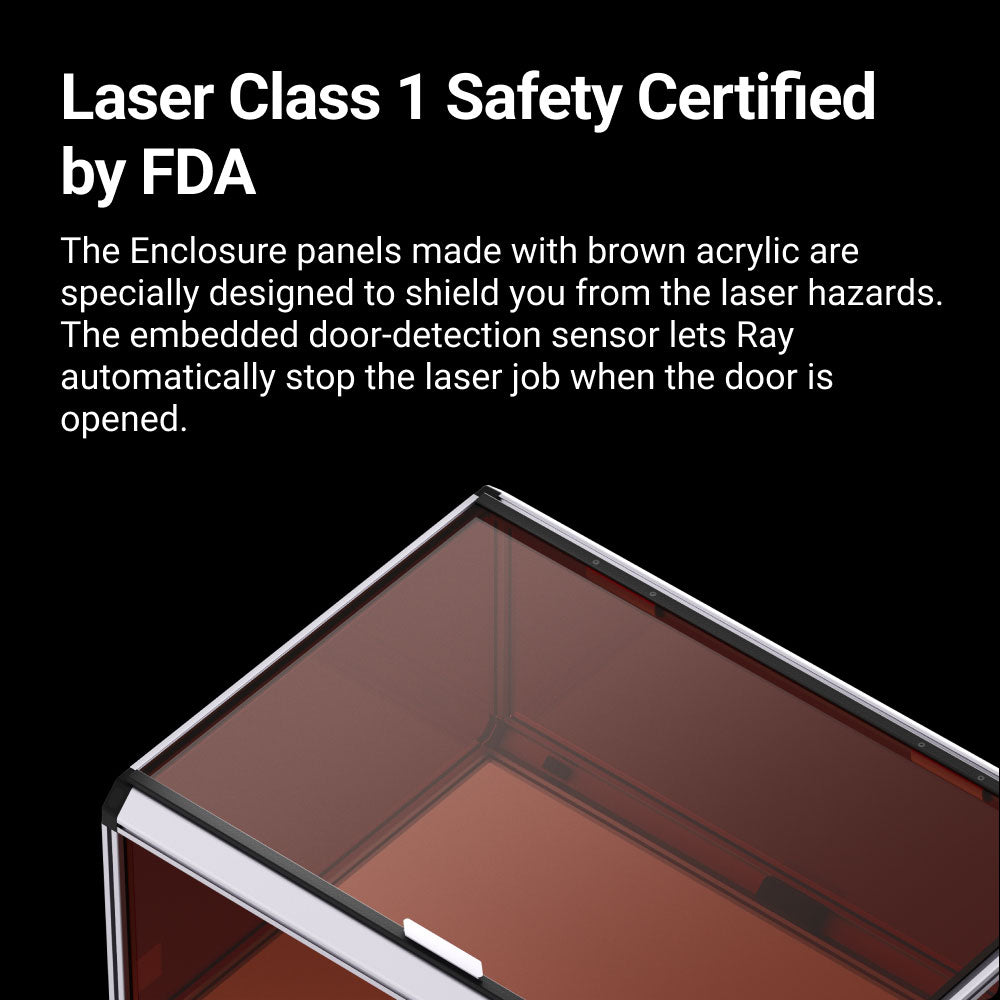

Laser Class 1 safety certified by FDA.

The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened.

Dust isolation.

Turn on the exhaust fan to cast off all the smoke and dust. You can further connect it with our Air Purifier to filter harmful chemicals.

Ray 40W's enclosure includes an exhaust fan and air purifier, effectively isolating dust and smoke for a clean working environment.

Laser focusing made easy with quick swap.

In just three steps, you can easily finish the calibration.

Its quick-swap laser focusing system, combined with an easy three-step calibration, makes Ray 40W a user-friendly choice.

Rotary engraving.

By adding a 4-axis, our Rotary Module enables your Snapmaker Ray to rotary laser.

Watch Snapmaker Ray In Action

Specification

General

Dimensions (Machine)

849mm × 600mm × 303mm

Dimensions (Machine & Enclosure)

933mm × 665mm × 417mm

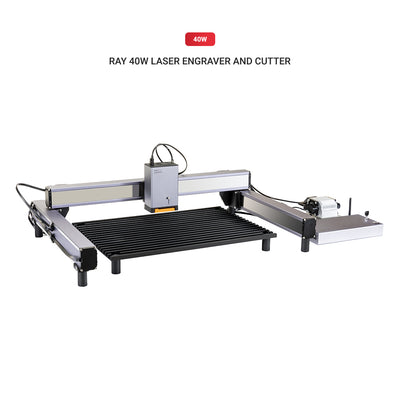

Ray 40W Laser Engraver and Cutter

Ray 20W Laser Engraver and Cutter

Performance

Laser Module Output Power

40W

20W

Laser Electric Power

140W

65W

Machine Power (Enclosure excl.)

215W

140W

Maximum Thickness of One-pass Cutting

15mm Basswood Plywood

10mm Basswood Plywood

Maximum Work Speed^[1]

500mm/s

Maximum Cutting Speed^[1]

20mm/s

10mm/s

Laser Spot Dimensions

0.1mm × 0.15mm

0.08mm × 0.1mm

Laser Type

450 - 460nm Semi-conductor

Dimension

Weight (Enclosure excl.)

15.06kg

14.6kg

Dimensions (Enclosure excl.)

849mm × 600mm × 303mm

849mm × 600mm × 278mm

Dimensions (Enclosure)

933mm × 665mm × 417mm

Maximum Workpiece Height

160mm (with two sets of cylindrical feet)

Work Area

400mm × 600mm

Supported Materials

Engraving Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Software

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Software

Luban, LightBurn

Connection

Wi-Fi, USB

Compatibility

Addons

Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module

In the Box

Ray 40W/20W Laser Cutter

20W/40W Laser Module × 1

Power Module × 1

Air Assist Pump × 1

Air Tube × 1

Cylindrical Foot × 8

Foot Holder × 4

M8 Air Tube Connector × 1

M5 Air Tube Connector × 1

Cable Tie × 2

X-axis Linear Module × 1

Y-axis Linear Module × 2

Cable Clip × 14

Quick-swap Toolhead Bracket × 1

Cable Collector × 1

USB Cable × 1

Toolhead Cable × 1

Right Linear Module Connector × 1

Left Linear Module Connector × 1

Foot Connector × 2

Wi-Fi Antenna × 1

Safety Key × 2

Laser Engraving and Cutting Platform × 1

AC Power Cable × 1

microSD Card × 1

Basswood Plywood × 1

Laser Safety Goggles × 1

Cotton Swab × 5

Laser Lens Protector × 1

M5 × 12 Screw × 36

M5 × 16 Screw × 5

H3.0 Hex Key × 1

microSD Card Reader × 1

Foot × 4

Z-axis Linear Module × 2

X-axis Linear Module × 1

Y-axis Linear Module × 2

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

Ray Machine Body (Without Laser Module)

Power Module × 1

Air Tube × 1

Cylindrical Foot × 8

Foot Holder × 4

M8 Air Tube Connector × 1

M5 Air Tube Connector × 1

Cable Tie × 2

X-axis Linear Module × 1

Y-axis Linear Module × 2

Cable Clip × 14

Quick-swap Toolhead Bracket × 1

Cable Collector × 1

USB Cable × 1

Toolhead Cable × 1

Right Linear Module Connector × 1

Left Linear Module Connector × 1

Foot Connector × 2

Wi-Fi Antenna × 1

Safety Key × 2

Laser Engraving and Cutting Platform × 1

AC Power Cable × 1

microSD Card × 1

Basswood Plywood × 1

Laser Safety Goggles × 1

Cotton Swab × 5

Laser Lens Protector × 1

M5 × 12 Screw × 36

M5 × 16 Screw × 5

H3.0 Hex Key × 1

microSD Card Reader × 1

Foot × 4

Enclosure for Ray

Diode Laser Max. Work Speed Industrial-grade Linear Rails Laser Vectors in Luban Work Area Smart Air Assist Laser Class 1 Safety Features highlights. Cutting-edge laser beam combining technology. 40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics. Strong cutting capabilities. Empowered by 40W output power. Achieve cleaner cuts with Air Assist. 1. Air gets pumped in. 2. Blow the fumes away and prevent charring. 3. Keep the laser lens clean. 4. Fumes get channeled out through grid table. 400mm × 600mm. You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as thick as 160mm. Industrial-grade Linear Rails. Support work speed up to 500mm/s and long-lasting operation. 500mm/s Max. Work Speed. Support work speed up to 500mm/s and long-lasting operation. Compatible with LightBurn. Support features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn. 1000+ laser vectors in Luban. Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes. Laser Class 1 safety certified by FDA. The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened. Dust isolation. Turn on the exhaust fan to cast off all the smoke and dust. You can further connect it with our Air Purifier to filter harmful chemicals. Laser focusing made easy with quick swap. In just three steps, you can easily finish the calibration. Rotary engraving. The upcoming Rotary Module can work on more daily life objects in the shape of ring, cone, sphere, or cylinder, etc. Watch Snapmaker Ray In Action Specification General Dimensions (Machine) 849mm × 600mm × 303mm Dimensions (Machine & Enclosure) 933mm × 665mm × 417mm Ray 40W Laser Engraver and Cutter Ray 20W Laser Engraver and Cutter Performance Laser Module Output Power 40W 20W Laser Electric Power 140W 65W Machine Power (Enclosure excl.) 215W 140W Maximum Thickness of One-pass Cutting 15mm Basswood Plywood 10mm Basswood Plywood Maximum Work Speed[1] 500mm/s 500mm/s Maximum Cutting Speed[1] 20mm/s 10mm/s Laser Spot Dimensions 0.1mm × 0.15mm 0.08mm × 0.1mm Laser Type 450 - 460nm Semi-conductor 450 - 460nm Semi-conductor Dimension Weight (Enclosure excl.) 15.06kg 14.6kg Dimensions (Enclosure excl.) 849mm × 600mm × 303mm 849mm × 600mm × 278mm Dimensions (Enclosure) 933mm × 665mm × 417mm 933mm × 665mm × 417mm Maximum Workpiece Height 160mm (with two sets of cylindrical feet) 160mm (with two sets of cylindrical feet) Work Area 400mm × 600mm 400mm × 600mm Supported Materials Engraving Materials Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded) Cutting Materials Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm) Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded) Software Supported Design File STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR Supported Processing File NC NC Software Luban, LightBurn Luban, LightBurn Connection Wi-Fi, USB Wi-Fi, USB Compatibility Addons Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared 2W Laser Module (coming soon) Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared 2W Laser Module (coming soon) In the Box Ray 40W/20W Laser Cutter 20W/40W Laser Module × 1 Power Module × 1 Air Assist Pump × 1 Air Tube × 1 Cylindrical Foot × 8 Foot Holder × 4 M8 Air Tube Connector × 1 M5 Air Tube Connector × 1 Cable Tie × 2 X-axis Linear Module × 1 Y-axis Linear Module × 2 Cable Clip × 14 Quick-swap Toolhead Bracket × 1 Cable Collector × 1 USB Cable × 1 Toolhead Cable × 1 Right Linear Module Connector × 1 Left Linear Module Connector × 1 Foot Connector × 2 Wi-Fi Antenna × 1 Safety Key × 2 Laser Engraving and Cutting Platform × 1 AC Power Cable × 1 microSD Card × 1 Basswood Plywood × 1 Laser Safety Goggles × 1 Cotton Swab × 5 Laser Lens Protector × 1 M5 × 12 Screw × 36 M5 × 16 Screw × 5 H3.0 Hex Key × 1 microSD Card Reader × 1 Foot × 4 Ray Machine Body (Without Laser Module) Power Module × 1 Air Tube × 1 Cylindrical Foot × 8 Foot Holder × 4 M8 Air Tube Connector × 1 M5 Air Tube Connector × 1 Cable Tie × 2 X-axis Linear Module × 1 Y-axis Linear Module × 2 Cable Clip × 14 Quick-swap Toolhead Bracket × 1 Cable Collector × 1 USB Cable × 1 Toolhead Cable × 1 Right Linear Module Connector × 1 Left Linear Module Connector × 1 Foot Connector × 2 Wi-Fi Antenna × 1 Safety Key × 2 Laser Engraving and Cutting Platform × 1 AC Power Cable × 1 microSD Card × 1 Basswood Plywood × 1 Laser Safety Goggles × 1 Cotton Swab × 5 Laser Lens Protector × 1 M5 × 12 Screw × 36 M5 × 16 Screw × 5 H3.0 Hex Key × 1 microSD Card Reader × 1 Foot × 4 Enclosure for Ray

Enclosure Door × 1

Front/Back Panel × 2

Left Side Panel × 1

Right Side Panel × 1

Long Beam-1 (with air inlets) × 1

Long Beam-3 (with Enclosure converter) × 1

Long Beam-4 (with hinges) × 1

Long Beam-2 (with hall switch) × 1

M4 Wing Nut × 5

Exhaust Fan Guard × 5

Exhaust Fan × 1

Profile Connector × 8

Snap Bushing × 1

Hose Connector × 1

Enclosure Cable × 1

Sealing Strip × 1

Column × 4

Short Beam (with LED strip) × 2

Short Beam × 2

Sealing Plug × 9

H3.0 Hex Key × 1

H2.5 Hex Key × 1

Hose Clamp × 1

Hose × 1

M5 × 30 Screw × 18

M4 × 40 Screw × 5

M5 × 12 Screw × 18

M4 × 12 Screw × 4

Cord Collecting Strip × 1

Notes:

[1] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Frequently Asked Questions

1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?

The maximum working speed is 500mm/s based on the 3mm Basswood Plywood performing one pass cutting. The laser spot dimensions are 0.1 mm × 0.15 mm.

2. What does Laser Class 1 Safety Certified by FDA mean?

This certification means the laser is safe under all normal use conditions, as the laser light is fully contained within an enclosure. This prevents any risk of accidental exposure to laser radiation.

3. What is Smart Air Assist and how does it improve laser machining?

Smart Air Assist automatically clears smoke and debris from the engraving area, enhancing quality and clarity by preventing residue buildup. This results in sharper details and reduces the risk of overheating or fire during laser engraving and cutting.

4. How does the Snapmaker Ray 40W achieve color laser marking on stainless steel?

The Snapmaker Ray 40W changes the thickness of a chromium oxide layer on stainless steel by heating it, which affects the light interference and creates various colors. Refer to these parameter sets for color laser marking guidance.

5. How does the machine ensure it operates accurately without errors

The Snapmaker Ray 40W laser engraver and cutter uses orientation detection with gyro sensors to ensure it operates accurately. These sensors verify that the machine is properly aligned and positioned before any task is initiated, minimizing operational errors.

Snapmaker Ray 20W & 40W Laser Cutter

Industrial-grade Linear Rails

Smart Air Assist

Diode Laser

Max. Work Speed

Laser Vectors in Luban

Work Area

Laser Class 1 Safety

Features highlights.

Cutting-edge laser beam combining technology..

40W Laser Module delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics.

Strong cutting capabilities.

Empowered by 40W output power.

Achieve cleaner cuts with Air Assist.

1. Air gets pumped in.
2. Blow the fumes away and prevent charring.
3. Keep the laser lens clean.
4. Fumes get channeled out through grid table.

400mm × 600mm.

You can realize big projects like maps, furniture models, and door signs. Ray can be raised up with cylindrical foot, enabling you to work with a laser job as thick as 160mm.

Industrial-grade Linear Rails.

Support work speed up to 500mm/s and long-lasting operation.

500mm/s Max. Work Speed.

Compatible with LightBurn.

Support features like serial connection, movement control, and G-code generation. Access full sets of recommended parameters for common laser materials in LightBurn.

1000+ laser vectors in Luban.

Luban provides an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

Laser Class 1 safety certified by FDA.

Dust isolation.

Turn on the exhaust fan to cast off all the smoke and dust. You can further connect it with our Air Purifier to filter harmful chemicals.

Laser focusing made easy with quick swap.

In just three steps, you can easily finish the calibration.

Rotary engraving.

By adding a 4-axis, our Rotary Module enables your Snapmaker Ray to rotary laser.

Watch Snapmaker Ray In Action

Specification

General

Dimensions (Enclosure excl.)

849mm × 600mm × 303mm

Dimension (Enclosure)

933mm × 665mm × 417mm

Ray 40W Laser Engraver and Cutter

Performance

Laser Module Output Power

40W

Laser Electric Power

140W

Machine Power (Enclosure excl.)

215W

Maximum Thickness of One-pass Cutting

15mm Basswood Plywood

Maximum Work Speed^[1]

500mm/s

Maximum Cutting Speed^[1]

20mm/s

Laser Spot Dimensions

0.1mm × 0.15mm

Laser Type

450 - 460nm Semi-conductor

Dimension

Weight (Enclosure excl.)

15.06kg

Dimensions (Enclosure excl.)

849mm × 600mm × 303mm

Dimensions (Enclosure)

933mm × 665mm × 417mm

Maximum Workpiece Height

160mm (with two sets of cylindrical feet)

Work Area

400mm × 600mm

Supported Materials

Engraving Materials

Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)

Software

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Software

Luban, LightBurn

Connection

Wi-Fi, USB

Compatibility

Addons

Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module

Ray 20W Laser Engraver and Cutter

Performance

Laser Module Output Power

20W

Laser Electric Power

65W

Machine Power (Enclosure excl.)

140W

Maximum Thickness of One-pass Cutting

10mm Basswood Plywood

Maximum Work Speed^[1]

500mm/s

Maximum Cutting Speed^[1]

10mm/s

Laser Spot Dimensions

0.08mm × 0.1mm

Laser Type

450 - 460nm Semi-conductor

Dimension

Weight (Enclosure excl.)

14.6kg

Dimensions (Enclosure excl.)

849mm × 600mm × 278mm

Dimensions (Enclosure)

933mm × 665mm × 417mm

Maximum Workpiece Height

160mm (with two sets of cylindrical feet)

Work Area

400mm × 600mm

Supported Materials

Engraving Materials

Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Software

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Software

Luban, LightBurn

Connection

Wi-Fi, USB

Compatibility

Addons

Enclosure for Snapmaker Ray, Air Purifier, 20W & 40W Laser Module, Rotary Module, 1064nm Infrared Laser Module

In the Box

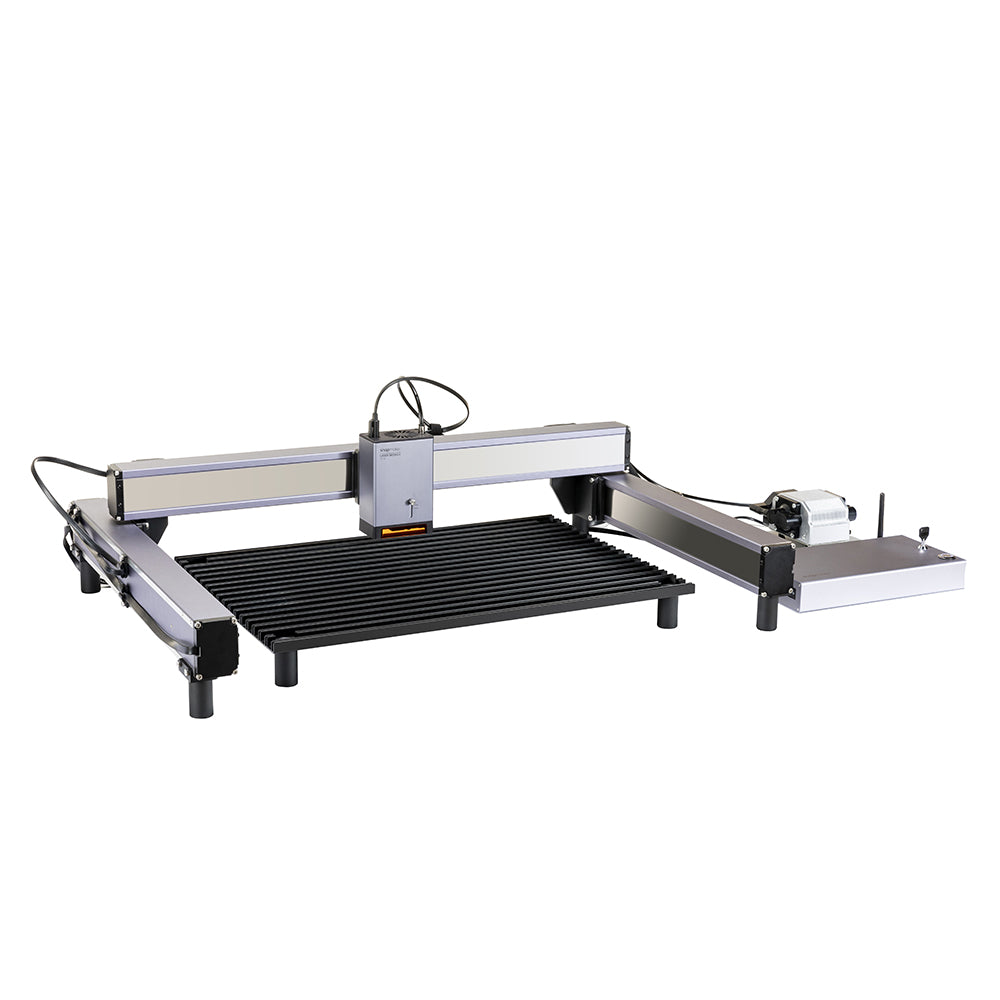

Ray 40W/20W Laser Cutter

20W/40W Laser Module × 1

Power Module × 1

Air Assist Pump × 1

Air Tube × 1

Cylindrical Foot × 8

Foot Holder × 1

M8 Air Tube Connector × 1

M5 Air Tube Connector × 1

Cable Tie × 2

X-axis Linear Module × 1

Y-axis Linear Module × 2

Cable Clip × 14

Quick-swap Toolhead Bracket × 1

Cable Collector × 1

USB Cable × 1

Toolhead cable × 1

Right Linear Module Connector × 1

Left Linear Module Connector × 1

Foot Connector × 2

Wi-Fi Antenna × 1

Safety Key × 2

AC Power Cable × 1

Laser Engraving and Cutting Platform × 1

Basswood Plywood × 1

Laser Safety Goggles × 1

Cotton Swab × 5

Laser Lens Protector × 1

M5 × 12 Screw × 36

M5 × 16 Screw × 5

H3.0 Hex Key × 1

microSD Card Reader × 1

microSD Card × 1

Foot × 4

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

Ray Machine Body (Without Laser Module)

Power Module × 1

Air Tube × 1

Cylindrical Foot × 1

Foot Holder × 1

M8 Air Tube Connector × 1

M5 Air Tube Connector × 1

Cable Tie × 2

X-axis Linear Module × 1

Y-axis Linear Module × 2

Cable Clip × 14

Quick-swap Toolhead Bracket × 1

Cable Collector × 1

USB Cable × 1

Toolhead cable × 1

Right Linear Module Connector × 1

Left Linear Module Connector × 1

Foot Connector × 2

Wi-Fi Antenna × 1

Safety Key × 2

Laser Engraving and Cutting Platform × 1

AC Power Cable × 1

microSD Card × 1

Basswood Plywood × 1

Laser Safety Goggles × 1

Cotton Swab × 5

Laser Lens Protector × 1

M5 × 12 Screw × 36

M5 × 16 Screw × 5

H3.0 Hex Key × 1

microSD Card Reader × 1

Foot × 4

Enclosure for Ray

Enclosure Door × 1

Front/Back Panel × 2

Left Side Panel × 1

Right Side Panel × 1

Long Beam-1 (with air inlets) × 1

Long Beam-3 (with Enclosure converter) × 1

Long Beam-4 (with hinges) × 1

Long Beam-2 (with hall switch) × 1

M4 Wing Nut × 1

Exhaust Fan Guard × 1

Exhaust Fan × 1

Profile Connector × 8

Snap Bushing × 1

Hose Connector × 1

Enclosure Cable × 1

Sealing Strip × 1

Column × 4

Short Beam (with LED strip) × 2

Short Beam × 2

Sealing Plug × 9

H3.0 Hex Key × 1

H2.5 Hex Key × 1

Hose Clamp × 1

Hose × 1

M5 × 30 Screw × 18

M4 × 40 Screw × 5

M5 × 12 Screw ×18

M4 × 12 Screw × 4

Cord Collecting Strip × 1

Notes:

[1] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Frequently Asked Questions

1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?

The maximum working speed is 500mm/s based on the 3mm Basswood Plywood performing one pass cutting. The laser spot dimensions are 0.1 mm × 0.15 mm.

Snapmaker Ray 40W Laser Engraver and Cutter with Air Assist (VAT Incl.)

4+ rolls at €19.99/roll, 8+ rolls at just €18.99/roll

SnapSpeed PLA Filament (1kg)

Matte PLA Filament (1kg)

Basic PLA Filament (1kg)

PETG Filament (1kg)

ABS Filament (1kg)

Customer Reviews

Snapmaker Ray 20W & 40W Laser Cutter

Features highlights.

Watch Snapmaker Ray In Action

Specification

In the Box

1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?

2. What does Laser Class 1 Safety Certified by FDA mean?

3. What is Smart Air Assist and how does it improve laser machining?

4. How does the Snapmaker Ray 40W achieve color laser marking on stainless steel?

5. How does the machine ensure it operates accurately without errors

1. What is the maximum working speed and laser spot dimensions of Snapmaker Ray 40W laser engraver and cutter?

2. What does Laser Class 1 Safety Certified by FDA mean?

3. What is Smart Air Assist and how does it improve laser machining?

4. How does the Snapmaker Ray 40W achieve color laser marking on stainless steel?

5. How does the machine ensure it operates accurately without errors

Your cart
